01 - Burner Box

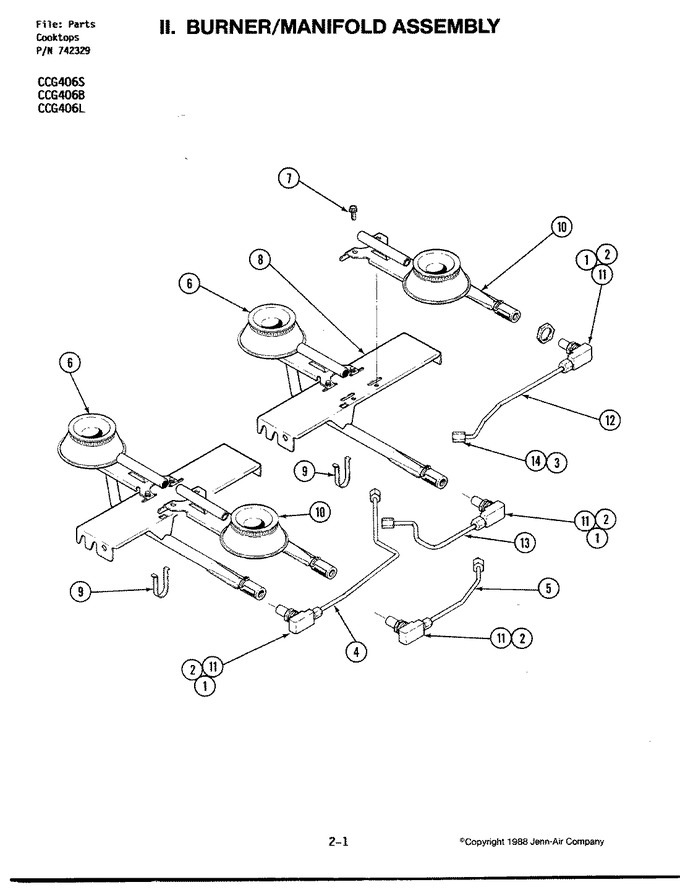

02 - Burner/manifold Assembly
03 - Control Assembly
04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y704947 | Washer | 4 |
|
- | ||||
| 1 | 704328 | Washer, Flat | 1 |
|
- | ||||
| 2 | Y704977 | Nut, 5/8`` Hex | 4 |
|
- | ||||
| 2 | Y704588 | Nut, 3/4`` Hex | 1 |
|
- | ||||
| 3 | 704590 | Sleeve | 1 |
|
- | ||||
| 4 | Y705166 | Tube W/ofifice (lr) | 4 |
|
- | ||||
| 4 | 704751 | Tube, Burner (lr) | 4 |
|
- | ||||
| 4 | 704509 | Tube (lr) | 1 |
|
- | ||||
| 5 | 705167 | Tube W/orifice (lf) | 4 |
|
- | ||||
| 6 | Y704518 | Burner, Rear | 1 |
|
$ 95.29 | ||||
| 6 | 74005189 | Burner, Rear (Replaces: Y705402) | 5 |
|
$ 211.73 | ||||
| 7 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 8 | WP3801F403-80 | Bracket, Burner (Replaces: Y704519) | 1 |
|
$ 71.17 | ||||
| 9 | 704549 | Clip, Spring | 1 |
|
- | ||||
| 10 | WP7505P283-60 | Burner, Front (Replaces: Y705401) | 4 |
|
$ 211.46 | ||||
| 10 | Y704517 | Burner, Front | 1 |
|
- | ||||
| 12 | 704700 | Tube (rf) | 3 |
|
- | ||||
| 12 | Y705165 | Tube, Right Front | 3 |
|
- | ||||
| 13 | Y705164 | Tube, Right Rear | 4 |
|
- | ||||
| 14 | 04100252 | Lp Conversion Pack | 6 |
|
- |
