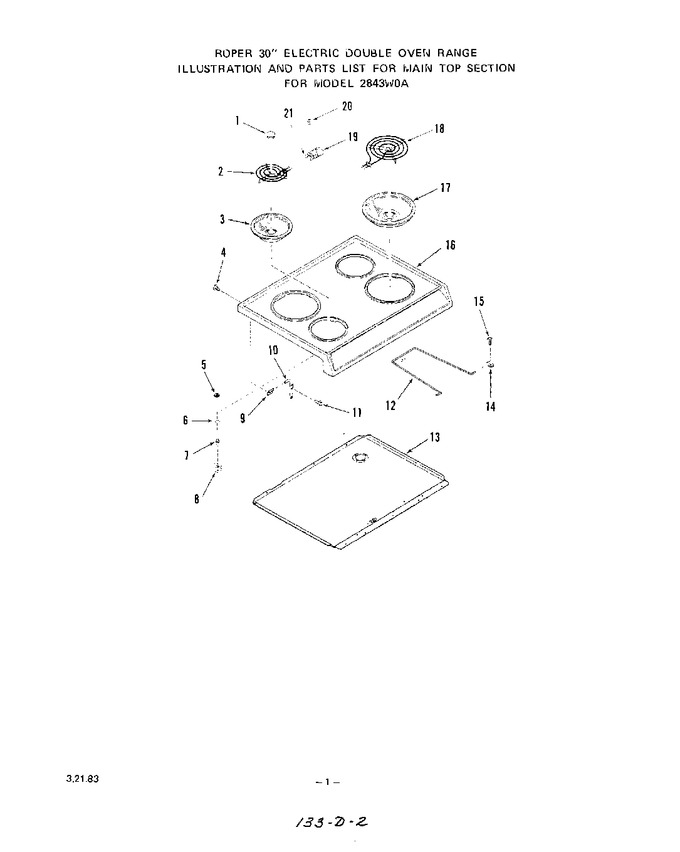

01 - Main Top
02 - Lower Body
03 - Lower Oven
04 - Upper Body
05 - Control Panel
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318586 | Medallion (4 Req) |
|
- | |||||
| 2 | 325507 | 6`` Surface Unit (lt. Front & Rt. Rear) |
|
- | |||||
| 3 | WPW10196406 | 6`` Chrome Bowl-lt., Rt. Rear & Lt. Front (Replaces: 296481) |
|
Immediately | $ 12.05 | ||||
| 4 | 321337 | Screw 10-32x7/16`` |
|
- | |||||
| 5 | 239764 | Keps Nut 8-32 |
|
- | |||||
| 6 | 99279 | Washer |
|
- | |||||
| 7 | 299784 | Strike (2 Req) |
|
- | |||||
| 8 | 71003 | Catch-main Top Strike (2 Req.) |
|
- | |||||
| 9 | 320931 | Bracket-main Top Hinge (2 Req) |
|
- | |||||
| 10 | 320922 | Left |
|
- | |||||
| 10 | 320921 | Right |
|
- | |||||
| 11 | 321162 | Screw 10-32 X 3/4`` |
|
- | |||||
| 12 | 320725 | Support Rod-main Top |
|
- | |||||
| 13 | 323944 | Burner Box Bottom |
|
- | |||||
| 14 | 285945 | Clip (2 Req) |
|
- | |||||
| 15 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 16 | 320960 | White |
|
- | |||||
| 16 | 320964 | Almond |
|
- | |||||
| 17 | WPW10196405 | 8`` Chrome Bowl (rt. Front & Lt. Rear) (Replaces: 304969) |
|
Immediately | $ 15.56 | ||||
| 18 | 325503 | 8`` Surface Unit (rt. Front & Lt. Rear) |
|
- | |||||
| 19 | 330031 | Terminal Block W/wire Lead (4 Req) (Replaces: 318960) |
|
Immediately | $ 14.48 | ||||
| 20 | 299632 | Screw 7-32x5/16`` |
|
- | |||||
| 21 | 318872 | Bracket-terminal Block (4 Req) |
|
- |
