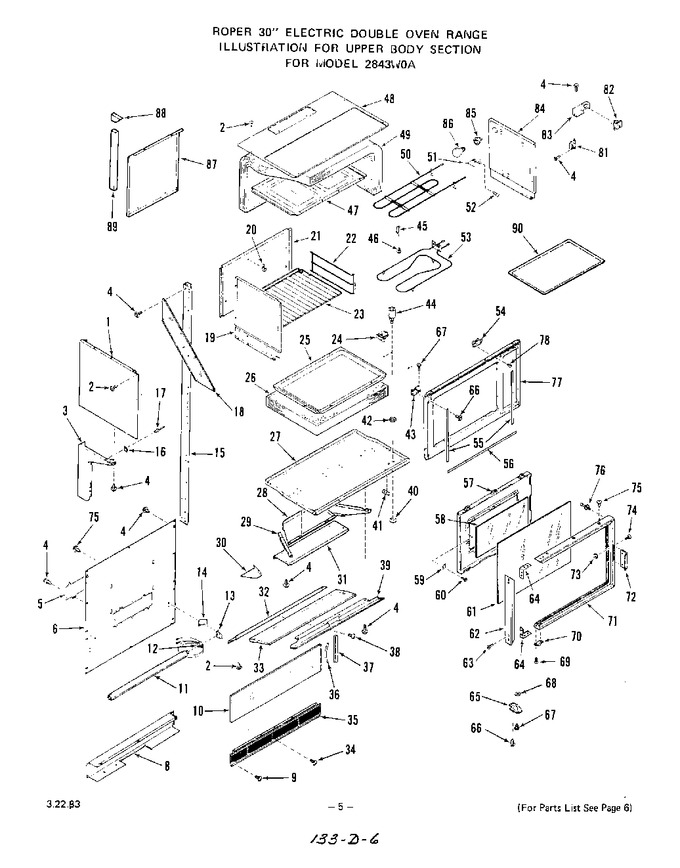

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	323885		Almond-left		Appelez-nous	-
1	323875		White - Right		Appelez-nous	-
1	323881		White - Left		Appelez-nous	-
1	323879		Almond - Right		Appelez-nous	-
2	295268		Screw 6-32x3/8``		Appelez-nous	-
3	325287		Almond-right		Appelez-nous	-
3	325289		White-left		Appelez-nous	-
3	325283		White - Right		Appelez-nous	-
3	325293		Almond - Left		Appelez-nous	-
4	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
5	322992		Cover Plate		Appelez-nous	-
6	323947		Wire Cover		Appelez-nous	-
8	323958		Wire Cover-fluorescent		Appelez-nous	-
9	303820		Screw 6-32 X 3/8``		Appelez-nous	-
10	324747		Lamp Glass		Appelez-nous	-
11	71734		Fluorescent Lamp (20 W - 24``)		Appelez-nous	-
12	325103		Right		Appelez-nous	-
12	325104		Left		Appelez-nous	-
13	324746		Bracket-fluorescent Lamp (rt. Or Lt.)		Appelez-nous	-
14	321107		Shield-wire (rt. Or Lt.)			Immediately	$ 41.96
15	324058		Support - Upper Oven (lt Or Rt)		Appelez-nous	-
16	285523		Retainer (2 Req)		Appelez-nous	-
17	101523		Pop Rivet		Appelez-nous	-
18	324791		Brace - Cabinet Side (lt Or Rt)		Appelez-nous	-
19	323953		Oven Side-left		Appelez-nous	-
20	115533		Thermostat Bulb Clip (2 Req)		Appelez-nous	-
21	305128		Oven Back		Appelez-nous	-
22	305628		Oven Rack Guide (rt. Or Lt.)		Appelez-nous	-
23	305629		Oven Rack (1 Req)		Appelez-nous	-
24	298794		Push Switch-oven Light		Appelez-nous	-
25	288663		Oven Bottom		Appelez-nous	-
26	DA97-17659A		Insulation   (Replaces: 110061)				$ 273.07
27	325048		Oven Cabinet Bottom		Appelez-nous	-
28	322937		Baffle - Vent		Appelez-nous	-
29	322949		Left		Appelez-nous	-
29	320257		Right		Appelez-nous	-
30	322935		Right		Appelez-nous	-
30	322933		Left		Appelez-nous	-
31	320261		Vent Bottom		Appelez-nous	-
32	320131		Almond		Appelez-nous	-
32	320127		White		Appelez-nous	-
33	321660		White		Appelez-nous	-
33	321664		Almond		Appelez-nous	-
34	295268		Screw 6-32x3/8``		Appelez-nous	-
35	324307		Lower Retainer-lamp Glass		Appelez-nous	-
36	286327		Spring - Lamp Glass End Trim (lt Or Rt)		Appelez-nous	-
37	299979		End Trim - Lamp Glass (lt Or Rt)		Appelez-nous	-
38	299766		Screw 6-32 X 1/2``		Appelez-nous	-
39	323820		White		Appelez-nous	-
39	323824		Almond		Appelez-nous	-
40	87403		Knurled Nut (2 Req)		Appelez-nous	-
41	324159		Support-oven Door		Appelez-nous	-
42	236129		Lock Nut (2 Req)		Appelez-nous	-
43	281781		Upper Hinge-oven Door		Appelez-nous	-
44	288557		Push Switch (fluorescent Light)		Appelez-nous	-
45	324809		Support-broiler Element		Appelez-nous	-
46	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
47	294297		Oven Top		Appelez-nous	-
48	323888		White		Appelez-nous	-
48	323892		Almond		Appelez-nous	-
49	324318		Insulation-top-sides & Back		Appelez-nous	-
50	319844		Broiler Element		Appelez-nous	-
51	305127		Guard-oven Lamp Bulb		Appelez-nous	-
52	102376		Screw 10-32 X 1/2``		Appelez-nous	-
53	319842		Bake Element		Appelez-nous	-
54	97003		Door Catch		Appelez-nous	-
55	292912		Side Seal - Oven Door (rt Or Lt)		Appelez-nous	-
56	292913		Seal-oven Door (bottom)		Appelez-nous	-
57	305134		Lining-oven Door		Appelez-nous	-
58	299988		Oven Door Glass-inner		Appelez-nous	-
59	299987		Retainer-oven Door Glass		Appelez-nous	-
60	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
61	308009		Oven Door Glass-outer		Appelez-nous	-
62	281846		End-oven Door Frame		Appelez-nous	-
63	102559		Screw 10 - 32 X 7/16``		Appelez-nous	-
64	292907		Bracket-oven Door Frame		Appelez-nous	-
65	323886		Lower Hinge-oven Door		Appelez-nous	-
66	316365		Screw 10-32x7/16``		Appelez-nous	-
67	292906		Hinge Pin		Appelez-nous	-
68	67710		Washer		Appelez-nous	-
69	280491		Screw 6-32x5/16``		Appelez-nous	-
70	286326		Broiler Stop		Appelez-nous	-
71	305130		Frame-oven Door		Appelez-nous	-
72	293051		Handle-oven Door		Appelez-nous	-
73	239764		Keps Nut 8-32		Appelez-nous	-
74	235134		Screw 8-32x1/2``		Appelez-nous	-
75	239113		Screw 10-32x3/8``		Appelez-nous	-
76	299263		Strike-oven Door		Appelez-nous	-
77	323873		Front Frame		Appelez-nous	-
78	78565		8-32x3/16``		Appelez-nous	-
78	97411		8-32x1/8``				$ 36.36
81	98186		Ballast		Appelez-nous	-
82	109180		Convenience Outlet		Appelez-nous	-
83	293747		Bracket-disconnect		Appelez-nous	-
84	323949		Oven Side-right		Appelez-nous	-
85	87883		Holder-oven Lamp Bulb		Appelez-nous	-
86	DA96-01243C		Oven Lamp Bulb   (Replaces: 111257)				$ 144.00
87	323970		Panel-air Vent		Appelez-nous	-
88	324339		Top Seal-vent (lt. Or Rt.)		Appelez-nous	-
89	324338		Foam Strip (lt. Or Rt.)		Appelez-nous	-
90	319430		Oven Bottom Liner		Appelez-nous	-
