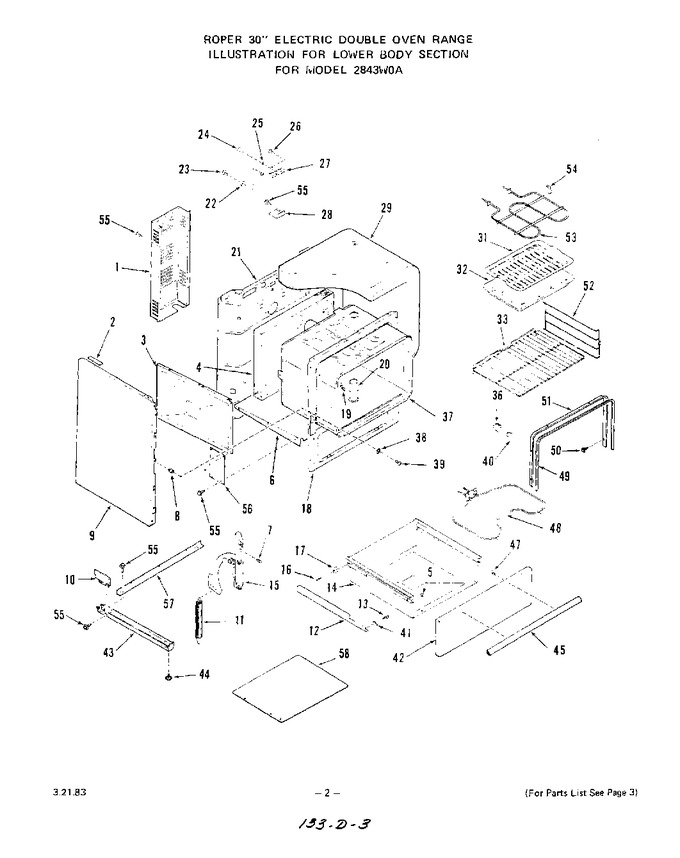

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	296026		Wire Shield		Appelez-nous	-
2	303513		Spacer-main Top		Appelez-nous	-
3	324188		Retainer-insulation		Appelez-nous	-
4	296140		Insulation - Oven Back		Appelez-nous	-
5	316365		Screw 10-32x7/16``		Appelez-nous	-
6	313281		Retainer-bottom Insulation		Appelez-nous	-
7	112013		Screw 10-32 X 5/8``		Appelez-nous	-
8	296006		Grommet - Screw (8 Req.)		Appelez-nous	-
9	323938		White		Appelez-nous	-
9	323942		Almond		Appelez-nous	-
10	324212		Bracket-support & Base		Appelez-nous	-
11	296170		Spring-oven Door (lt. Or Rt.)		Appelez-nous	-
12	311441		Support-storage Drawer (lt. Or Rt.)		Appelez-nous	-
13	295849		Screw 10-32x17/32``		Appelez-nous	-
14	296150		Storage Drawer		Appelez-nous	-
15	303132		Right		Appelez-nous	-
15	303133		Left		Appelez-nous	-
16	DE81-02123A		Screw 8 - 32 X 3/8``   (Replaces: 102563)				$ 1.66
17	281913		Rear Slide Block - Lt. Or Rt.		Appelez-nous	-
18	323800		Front Frame		Appelez-nous	-
19	115533		Thermostat Bulb Clip (2 Req)		Appelez-nous	-
20	308726		Vent Tube		Appelez-nous	-
21	323921		Main Back		Appelez-nous	-
22	299425		Washer		Appelez-nous	-
23	313191		Screw 10-32x7/16``		Appelez-nous	-
24	97816		Hex Nut 10-32		Appelez-nous	-
25	304987		Ground Strap		Appelez-nous	-
26	313190		Screw 10-32x1``		Appelez-nous	-
27	290105		Junction Block		Appelez-nous	-
28	281903		Range Service Mounting Plate		Appelez-nous	-
29	296138		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
31	291398		Broiler Pan Grid		Appelez-nous	-
32	291397		Broiler Pan		Appelez-nous	-
33	305408		Oven Rack (2 Req)		Appelez-nous	-
36	87883		Holder-oven Lamp Bulb		Appelez-nous	-
37	324900		Oven Body		Appelez-nous	-
38	303963		Washer		Appelez-nous	-
39	WP303896		Screw 8abx1``   (Replaces: 303896)			Immediately	$ 66.12
40	DA96-01243C		Oven Lamp Bulb   (Replaces: 111257)				$ 144.00
41	281914		Front Slide Block-(lt. Or Rt.)		Appelez-nous	-
42	307750		White		Appelez-nous	-
42	WP912618		Almond   (Replaces: 308541)				$ 6.98
43	323929		Base W/levelers (lt Or Rt)		Appelez-nous	-
44	69065		Leg Leveler		Appelez-nous	-
45	292240		Handle		Appelez-nous	-
47	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
48	301444		Bake Element		Appelez-nous	-
49	296102		Seal - Oven Door		Appelez-nous	-
50	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
51	296103		Retainer - Oven Door Seal		Appelez-nous	-
52	305409		Guide-oven Rack (rt. Or Lt.)		Appelez-nous	-
53	319487		Broiler Element		Appelez-nous	-
54	324808		Support-broiler Element		Appelez-nous	-
55	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
56	324305		Shield-hinge (lt. Or Rt.)		Appelez-nous	-
57	323931		Strap - Main Back & Base		Appelez-nous	-
58	319163		Oven Bottom Liner		Appelez-nous	-
