Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 780015 Screw, Truss Hd. Tapping, 4 X 8 Mm, Z1-2 Appelez-nous -
2 780102 Back-up Battery Appelez-nous -
3 780133 Screw, Truss Hd. Tapping, 4 X 10 Mm, Z1-2 Appelez-nous -
4 780523 Battery Holder Appelez-nous -
5 780524 Caution Label And Name Plate Appelez-nous -
6 780525 Oven Cavity Xxx (also Order 780524 Caution Label Key No. 5 And One 780526 Circuit Diagram When Repla Appelez-nous -
7 780021 Special Washer, Temperature Probe Jack Appelez-nous -
8 780022 Special Nut, Temperature Probe Jack Appelez-nous -
9 780023 Jack, Temperature Probe Appelez-nous -
10 780024 5-wire Harness With Socket Appelez-nous -
11 780025 Temperature Probe Appelez-nous -
12 780527 Cavity Frame Appelez-nous -
13 780026 Plastic Stopper, Glass Tray Appelez-nous -
14 780027 Plastic Stopper Appelez-nous -
15 780528 Ferrite Rubber Xxx Appelez-nous -
16 780529 Trim Bracket Xxx Appelez-nous -
17 780032 Glass Tray Appelez-nous -
18 780031 Rack Holder Appelez-nous -
19 780030 Metal Rack Appelez-nous -
20 780029 Stirrer Cover Appelez-nous -
21 780530 Hinge, Lower Xxx Appelez-nous -
22 780486 Bolt, Hex Hd. With Phillips Slot, 5 X 12 Mm Z1 Appelez-nous -
23 780036 Nut, Hex. Hd., 8 Mm, Z1-1 Appelez-nous -
24 780037 Special Washer Appelez-nous -
25 780038 Collar, Stirrer Shaft Appelez-nous -
26 780039 Stirrer Fan Ass`y Appelez-nous -
27 780040 Stirrer Shaft Appelez-nous -
28 780041 Washer, 5 Mm U Appelez-nous -
29 W10439651 Air Guide, Stirrer, Right   (Replaces: 780043) Special Order $ 294.17

30 780044 Air Guide, Stirrer, Left Appelez-nous -
31 780220 Screw, Pan Hd. Tapping, 3 X 8 Mm, Z1-2 Appelez-nous -
32 780042 Nut, Hex Hd. With Washer, 5 Mm, Z1 Appelez-nous -
33 780045 Lamp Socket (ul Listed) Appelez-nous -
34 780047 Lamp, 120v 30w Appelez-nous -
35 780531 Bracket, Lamp Socket Appelez-nous -
36 780050 Light Opening Cover Appelez-nous -
37 780048 Wire Clip Appelez-nous -
780526 Xcircuit Diagram Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

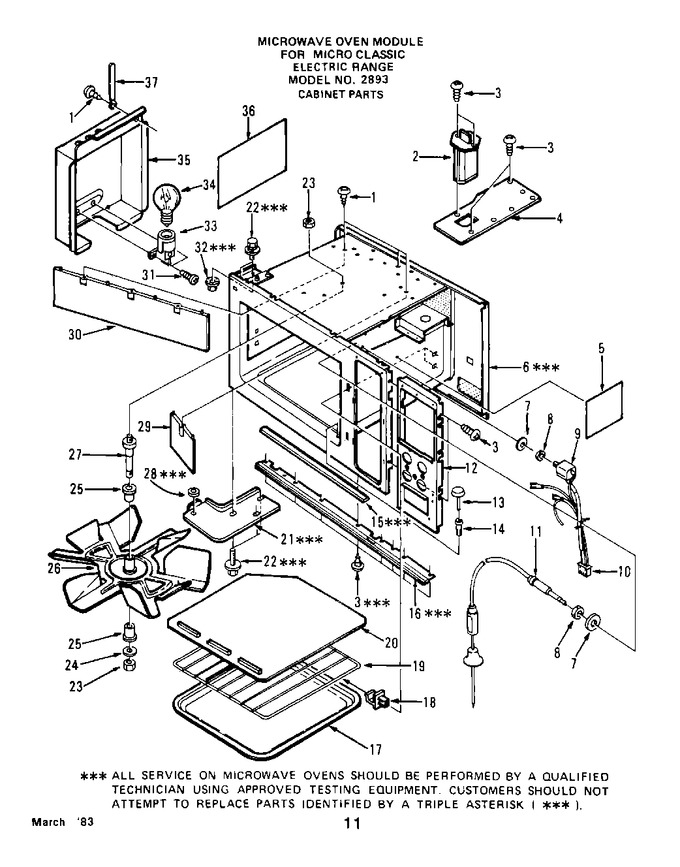

Diagram for 2893W0A
