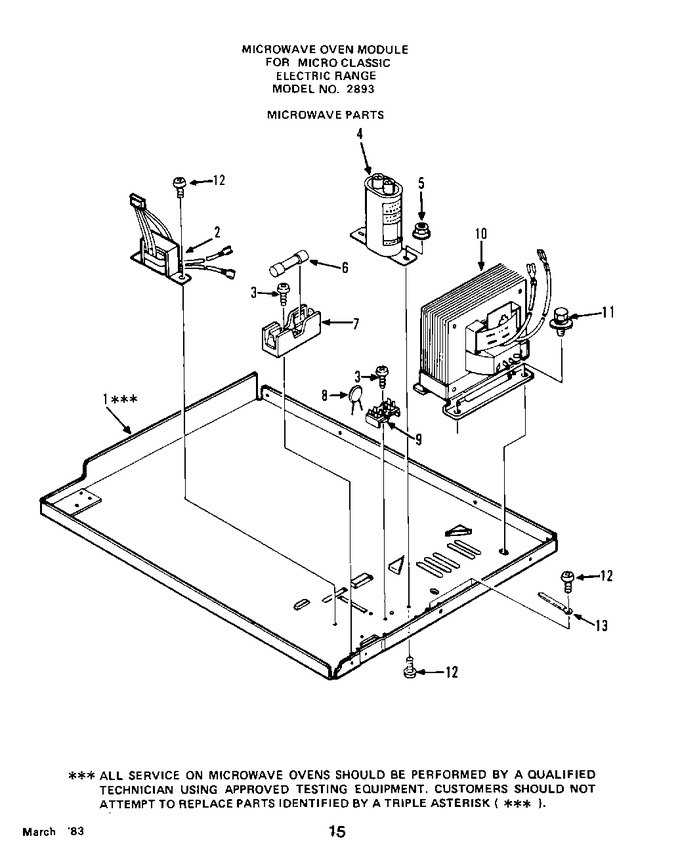

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	780538		Bottom Plate		Appelez-nous	-
2	780085		Step-down Transformer, Control Circuit, P6t-3826		Appelez-nous	-
3	780083		Screw, Bind Hd. Tapping, 4 X 12 Mm, Z1-2		Appelez-nous	-
4	780087		Hinge Voltage Capacitor With Resistor And Rectifier, 0.85 Mfd 2.4 Kv		Appelez-nous	-
5	780086		Nut, Hex Hd. With Washer, 4 Mm, Z1-1		Appelez-nous	-
6	780539		Fuse, 15a		Appelez-nous	-
7	780540		Fuse Holder (ul Listed)		Appelez-nous	-
8	780092		Varistor		Appelez-nous	-
9	780093		Terminal Board		Appelez-nous	-
10	780088		High Voltage Transformer, 120v Input, H6t-3826		Appelez-nous	-
11	780099		Bolt, Hex Hd. Machine With Spring Washer And Bolt Washer, 6 X 16 Mm, Z1		Appelez-nous	-
12	780100		Screw, Pan Hd. Diacut, 4 X 10 Mm, Z1		Appelez-nous	-
13	780048		Wire Clip		Appelez-nous	-
