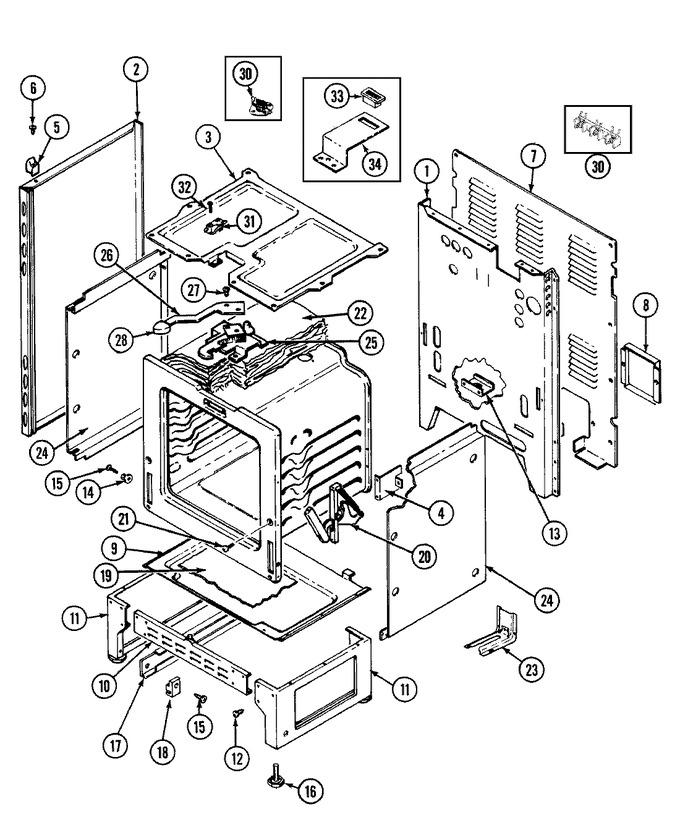

01 - Body
02 - Control Panel (ce3878vra/vrw/xrb)
03 - Door/drawer
04 - Oven
05 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 1 | 4002F184-80 | Back, Main | 01 |
|
- | ||||
| 2 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 2 | 2618F099-70 | Panel, Side (blk) | 15 |
|
- | ||||
| 2 | 2618F085-70 | Panel, Side (blk) | 01 |
|
- | ||||
| 3 | 4011F207-19 | Box, Burner | 01 |
|
- | ||||
| 4 | 3807F400-51 | Support,oven Rear | 01 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 01 |
|
- | ||||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 01 |
|
- | ||||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 7 | 4005F348-51 | Cover, Main Back Wire | 01 |
|
- | ||||
| 8 | 4005F427-51 | Cover, Access | 01 |
|
- | ||||
| 9 | 3804F109-51 | Retainer, Bottom Insulation | 01 |
|
- | ||||
| 10 | 4020F001-80 | Pedestal, Front/rear | 01 |
|
- | ||||
| 11 | 4020W007-80 | Pedestal, Side | 01 |
|
- | ||||
| 12 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 13 | 3605F174-51 | Plate, Conduit Tubing | 01 |
|
- | ||||
| 14 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 01 |
|
$ 7.07 | ||||
| 15 | W11772394 | Screw (Replaces: 7101P300-60) | 01 |
|
Immediately | $ 10.94 | |||
| 16 | 7101P306-60 | Leg, Leveling | 01 |
|
- | ||||
| 17 | 3406F028-51 | Runner, Drawer | 01 |
|
- | ||||
| 18 | 8004P025-60 | Support, Drawer | 01 |
|
- | ||||
| 19 | 8312P058-60 | Foil, Insulation Retainer | 01 |
|
- | ||||
| 20 | 7106P033-60 | Hinge, Door | 01 |
|
- | ||||
| 21 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 22 | 4804F029-60 | Insulation, Wrap | 01 |
|
- | ||||
| 22 | 4804F030-60 | Insulation, Back & Bottom | 01 |
|
- | ||||
| 23 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 01 |
|
Immediately | $ 4.69 | |||
| 23 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 01 |
|
$ 26.33 | ||||
| 24 | 3804F103-51 | Retainer, Insulation (side) | 01 |
|
- | ||||
| 25 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 25 | 8002P025-60 | Latch Assy. | 01 |
|
- | ||||
| 26 | 8009P016-60 | Lever, Lock | 01 |
|
- | ||||
| 27 | 7109P015-60 | Washer | 01 |
|
- | ||||
| 27 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 01 |
|
$ 4.29 | ||||
| 28 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 28 | 7701P088-60 | Handle, Latch (blk) | 01 |
|
- | ||||
| 29 | 7401P041-60 | Board, Terminal | 01 |
|
- | ||||
| 30 | 7403P160-60 | Switch, Hi-limit | 01 |
|
- | ||||
| 31 | 7403P228-60 | Switch, Door Latch | 01 |
|
- | ||||
| 32 | 7101P130-60 | Screw, Latch Switch | 01 |
|
- | ||||
| 33 | 7407P089-60 | Light, Indicator | 01 |
|
- | ||||
| 33 | 7407P097-60 | Light, Indicator (hot Surface) | 11 |
|
- | ||||
| 34 | 5175D052-60 | Harness, Burner Box | 01 |
|
- | ||||
| 34 | 3801F302-45 | Bracket, Ind. | 01 |
|
- | ||||
| NI | 5195D082-60 | Harness, Door Latch | 01 |
|
- |
