01 - Body
02 - Control Panel (ce3878vra/vrw/xrb)
03 - Door/drawer
04 - Oven
05 - Top Assembly
SELECT A DIAGRAM
New Model Search:

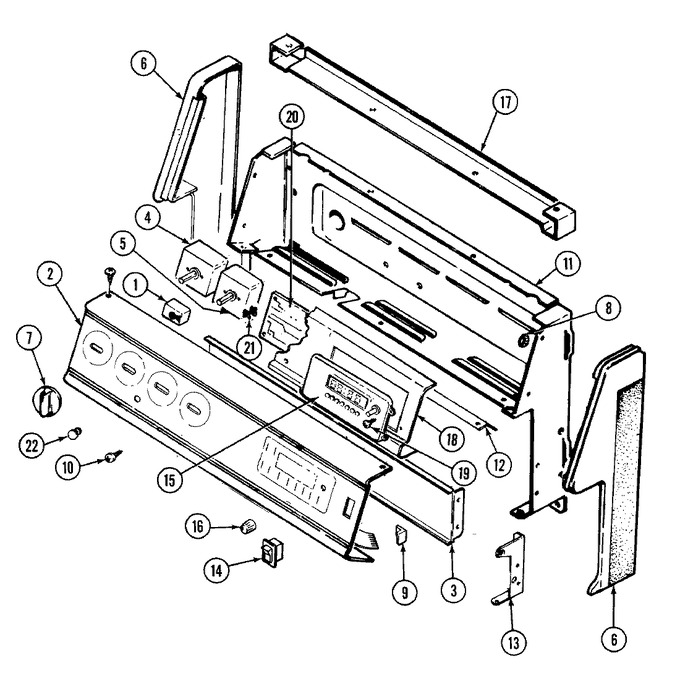

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7407P081-60 | Light, Indicator | 01 |
|
- | ||||
| 1 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 13 |
|
$ 106.11 | ||||
| 2 | 4876S001-59 | Panel, Control Assy | 01 |
|
- | ||||
| 2 | 4876S009-59 | Panel, Control Assy | 14 |
|
- | ||||
| 2 | 4876S001-59 | Panel, Control Assy | 17 |
|
- | ||||
| 3 | 3802F087-51 | Brace, Lwr Bkgd | 01 |
|
- | ||||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 01 |
|
Immediately | $ 57.78 | |||
| 5 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 01 |
|
Immediately | $ 35.10 | |||
| 6 | 7726P060-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 6 | 7726P059-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 7 | 7731P082-60 | Knob, Therm/burner (blk) | 01 |
|
- | ||||
| 8 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 9 | 8010P083-60 | Spacer | 01 |
|
- | ||||
| 10 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 01 |
|
Immediately | $ 6.26 | |||
| 11 | 4001F094-51 | Housing, Control Panel | 01 |
|
- | ||||
| 11 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 12 | 3604F201-80 | Shield, Sight | 01 |
|
- | ||||
| 13 | 3807F423-51 | Support, Housing (rt) | 01 |
|
- | ||||
| 13 | 3807F424-51 | Support, Housing (lt) | 01 |
|
- | ||||
| 14 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 15 | 7601P212-60 | Clock, ``t`` Elec. | 01 |
|
- | ||||
| 15 | 7601P209-60 | Clock | 14 |
|
- | ||||
| 15 | 7601P212-60 | Clock, ``t`` Elec. | 17 |
|
- | ||||
| 16 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 01 |
|
$ 12.13 | ||||
| 17 | 4001F064-51 | Extension, Control Panel | 01 |
|
- | ||||
| 18 | 3801F310-45 | Bracket, Clock | 01 |
|
- | ||||
| 19 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 01 |
|
$ 6.98 | ||||
| 20 | 7428P013-60 | Relay Board | 01 |
|
- | ||||
| 21 | 8004P020-60 | Support, Relay Board | 01 |
|
- | ||||
| 22 | W11690131 | Lens, Indicator Light (Replaces: 7730P008-60) | 01 |
|
$ 6.73 | ||||
| 22 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 13 |
|
$ 6.73 | ||||
| NI | 5170P123-60 | Harness Sensor | 17 |
|
- | ||||
| NI | 5170P124-60 | Harness Ctrl To Relay | 01 |
|
- | ||||
| NI | 5170P124-60 | Harness Ctrl To Relay | 17 |
|
- | ||||
| NI | 5170P162-60 | Harness, Sensor & Lock | 14 |
|
- | ||||
| NI | 5170D122-60 | Harness Bkgd | 17 |
|
- | ||||
| NI | 8112P105-60 | Manual, Use & Care-insert | 01 |
|
- | ||||
| NI | 8113P008-60 | Manual, Use & Care | 01 |
|
- | ||||
| NI | 8113P026-60 | Insert, Instr Sheet (clock) | 01 |
|
- | ||||
| NI | 5170P123-60 | Harness Sensor | 01 |
|
- | ||||
| NI | 5125A323-60 | Harness Loose Wire | 01 |
|
- | ||||
| NI | 5125A323-60 | Harness Loose Wire | 17 |
|
- | ||||
| NI | 5125A352-60 | Wires, Loose | 14 |
|
- | ||||
| NI | 5170D122-60 | Harness Bkgd | 01 |
|
- | ||||
| NI | 5170D165-60 | Harness | 14 |
|
- |
