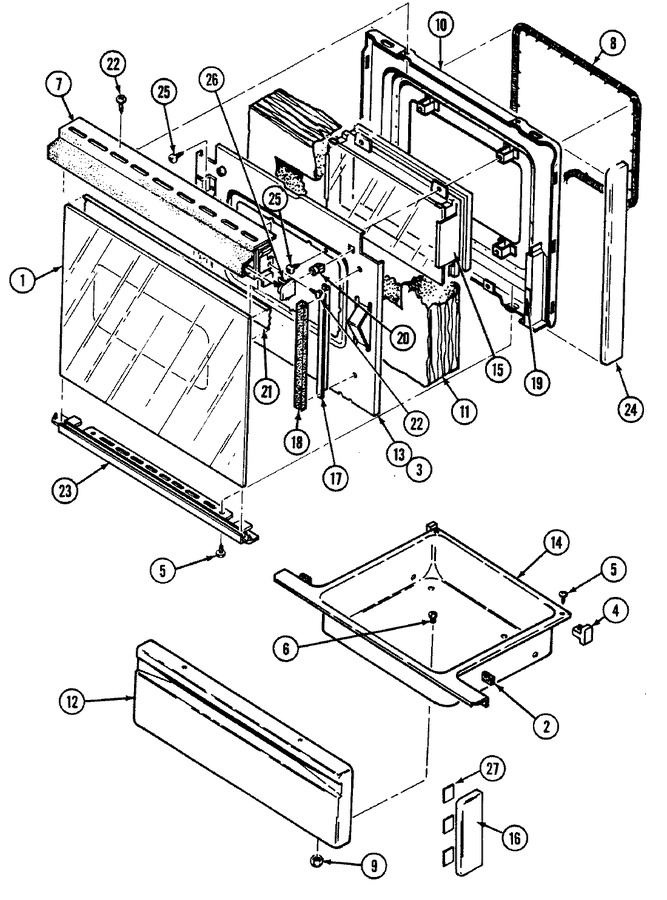

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P321-60		Glass, Door (blk)	1	Appelez-nous	-
2	WP854334		Spacer, Rubber   (Replaces: 8010P086-60)	1			$ 11.95
3	8010P085-60		Spacer, Rubber	1	Appelez-nous	-
4	8004P026-60		Support, Drawer (rear)	1			$ 9.29
5	WP74009541		Screw (alm)   (Replaces: 7101P307-60)	1			$ 6.26
6	WP4159193		Screw   (Replaces: 7101P115-60)	1			$ 4.29
7	7701P103-60		Handle, Door (blk)	1	Appelez-nous	-
8	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	1		Immediately	$ 77.61
9	WPW10131078		Nut, Lock   (Replaces: 7103P085-60)	1			$ 4.00
10	2402W202-19		Lining, Door	1	Appelez-nous	-
11	4804F034-60		Insulation, Door	1	Appelez-nous	-
12	2416F039-65		Panel, Drawer (blk)	1	Appelez-nous	-
13	3601F232-45		Baffle, Door	1	Appelez-nous	-
14	3405F015-80		Drawer, Storage	1	Appelez-nous	-
15	7907P014-60		Glass Asy, Oven Door	1	Appelez-nous	-
16	Y7744P07060		End Cap (blk)	1	Appelez-nous	-
17	3818F052-51		Channel, Air	1	Appelez-nous	-
18	7208P002-60		Seal	1	Appelez-nous	-
19	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	1			$ 11.95
20	8010P075-60		Spacer	1	Appelez-nous	-
21	8270P090-60		Tape, Foil (3`` Wide)	1	Appelez-nous	-
22	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	1			$ 15.94
23	7744P105-60		Trim, Bottom (blk)----na	1	Appelez-nous	-
24	7744P055-60		End Cap, Oven Door (blk)	1	Appelez-nous	-
25	W11233072		Screw   (Replaces: 7101P290-60)	1		Immediately	$ 12.62
26	7744P075-60		End Cap (rt)	1	Appelez-nous	-
26	7744P076-60		End Cap (lt)	1	Appelez-nous	-
27	8270P098-60		Tape	1			$ 5.02
