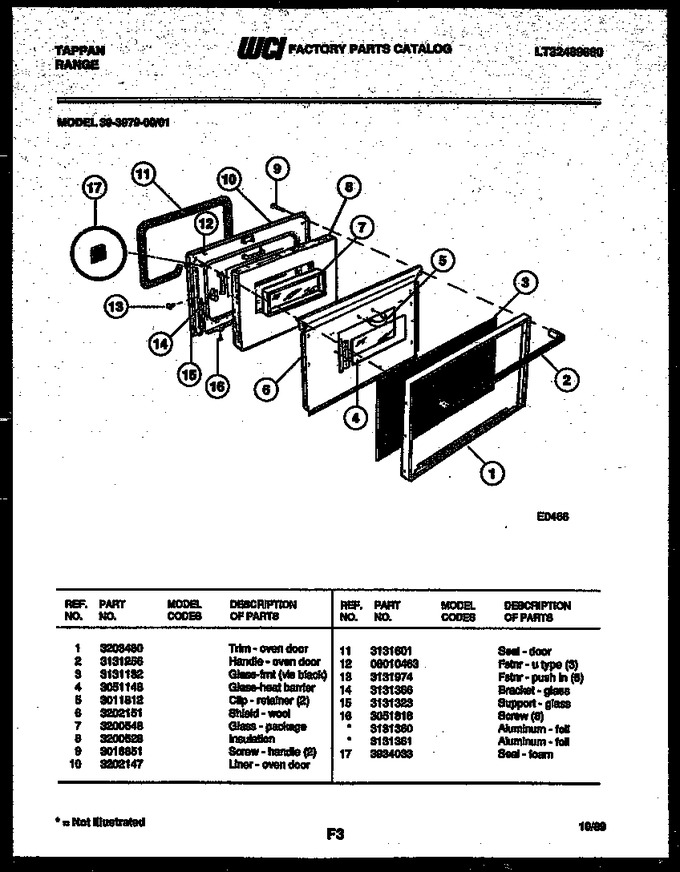

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3203480		Trim, Oven Door		Appelez-nous	-
2	3131256		Handle, Oven Door		Appelez-nous	-
3	3131132		Glass-frnt (vis Black)		Appelez-nous	-
4	3051148		Glass, Heat Barrier		Appelez-nous	-
5	3011812		Clip - Retainer (2)		Appelez-nous	-
6	3202151		Shield, Wool		Appelez-nous	-
7	3200548		Glass-package		Appelez-nous	-
8	3200528		Insulation		Appelez-nous	-
9	3016851		Screw, Handle (2)		Appelez-nous	-
10	3202147		Liner-oven Door		Appelez-nous	-
11	3131601		Seal, Door		Appelez-nous	-
12	08010463		Fastener-clip		Appelez-nous	-
13	3131974		Fstnr, Push In (6)		Appelez-nous	-
14	3131366		Bracket - Glass		Appelez-nous	-
15	3131323		Support, Glass		Appelez-nous	-
16	3051818		Screw (8)		Appelez-nous	-
17	3934033		Seal, Foam		Appelez-nous	-
16A	3131360		Aluminum - Foil (non-illustrated)		Appelez-nous	-
16B	3131361		Aluminum - Foil (non-illustrated)		Appelez-nous	-
