Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131283		Baffle, Broil		Appelez-nous	-
2	3131284		Baffle-oven				$ 155.77
3	08067935		Burner-broiler				$ 142.59
4	3131290		Burner-oven		Appelez-nous	-
5	3011567		Burner Top (4)		Appelez-nous	-
6	3018617		Retainer-igniter (2)		Appelez-nous	-
7	3131970		Burner-tube (lf Rf)		Appelez-nous	-
8	3011569		Burner-tube (rr)		Appelez-nous	-
9	3011570		Burner-tube (lr)		Appelez-nous	-
10	136T355W03		Channel-flast Tube (2)		Appelez-nous	-
11	3012358		Ferrule (4)		Appelez-nous	-
12	3131105		Igniter Top 50`` (2)		Appelez-nous	-
13	3018861		Manifold Pipe		Appelez-nous	-
14	3017846		Valve Top Pos (4)		Appelez-nous	-
15	3012204		Elbow 1/2 Np 9/16-24		Appelez-nous	-
16	3131580		Switch, Igniter (4)		Appelez-nous	-
17	08067970		Igniter-broiler Burner		Appelez-nous	-
18	3131300		Igniter, Oven		Appelez-nous	-
19	3200669		Igniter-module		Appelez-nous	-
20	455T008P02		Mixer, Elbow		Appelez-nous	-
21	3131358		Nut-hex		Appelez-nous	-
25	3131261		Fitting, Loxit (6)		Appelez-nous	-
26	3014477		Tube-aluminum 3/8		Appelez-nous	-
27	3131109		Tube, Aluminum, 3/8		Appelez-nous	-
28	3131364		Tube Aluminum 3/8		Appelez-nous	-
29	08068007		Valve-safety (dual)		Appelez-nous	-
30	08067923		Control Regular		Appelez-nous	-
31	3131110		Bracket-regular		Appelez-nous	-
32	3013272		Nut		Appelez-nous	-
33	499T015P08		Spud No 50		Appelez-nous	-
34	3013279		Nut, Special				$ 2.34
15A	3131148		Nut Compressor (4) (non-illustrated)		Appelez-nous	-

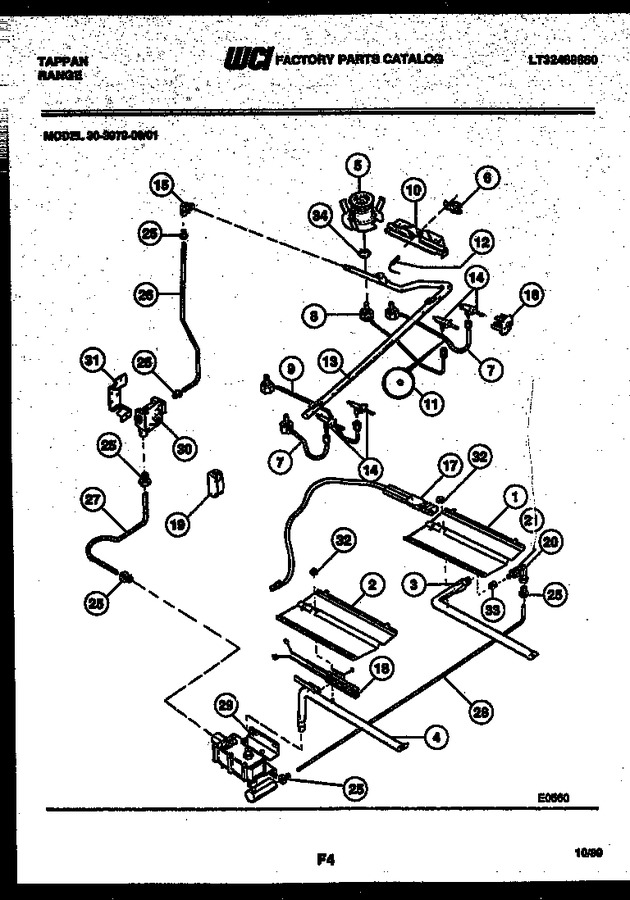

    View Diagram in Separate Window       Print Part List
