02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Burner, Manifold And Gas Control
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:

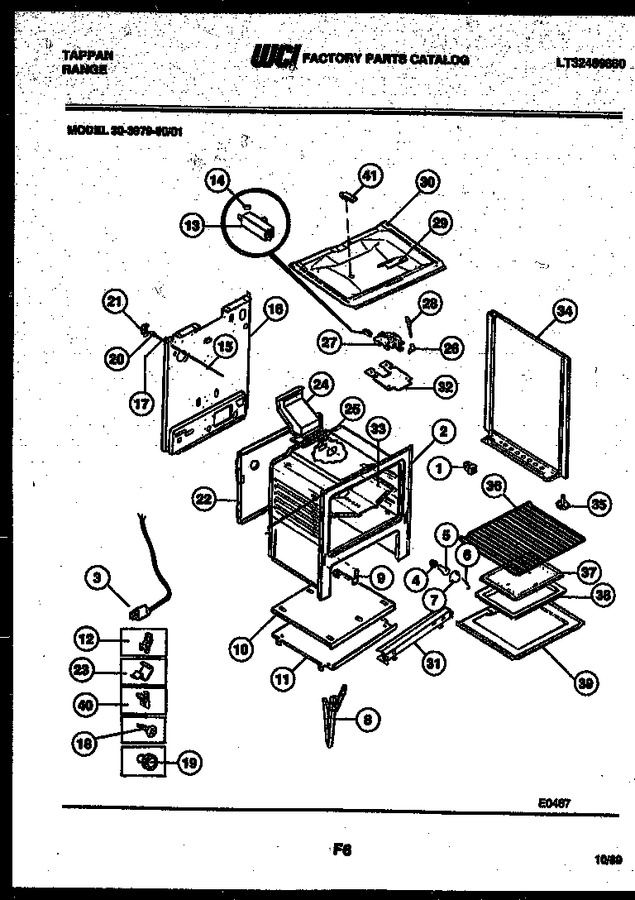

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 3 | 3202008 | Cord - Power |
|
- | |||||
| 4 | 3014073 | Socket-oven Light |
|
- | |||||
| 5 | 3013071 | Light Bulb - Oven |
|
- | |||||
| 6 | 3204483 | Wire, Glass Retainer |
|
- | |||||
| 7 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 8 | 3051414 | Channel, Door Hinge (2) |
|
- | |||||
| 9 | 3131570 | Cover-hinge Cutout (2) |
|
$ 7.35 | |||||
| 10 | 3131951 | Shield-heat-upper |
|
- | |||||
| 11 | 3131313 | Shield-heat-lower |
|
- | |||||
| 12 | 3011805 | Clip - Thermo Bulb |
|
- | |||||
| 13 | 3131672 | Switch-latch |
|
- | |||||
| 14 | 3051733 | Fastener Push On |
|
- | |||||
| 15 | 3051251 | Cover, Rod |
|
- | |||||
| 16 | 3203082 | Back-main |
|
- | |||||
| 17 | 3051495 | Rod, Light |
|
- | |||||
| 18 | 316282700 | Screw-bottom (2) (Replaces: 3131732) |
|
$ 9.93 | |||||
| 19 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 20 | 3202622 | Switch-door |
|
- | |||||
| 21 | 3011564 | Bracket-light Switch |
|
- | |||||
| 22 | 3131316 | Shield, Heat |
|
- | |||||
| 23 | 3011813 | Clip-wire |
|
$ 14.79 | |||||
| 24 | 3131931 | Flue |
|
- | |||||
| 25 | 3131355 | Gasket, Flue |
|
- | |||||
| 26 | 358T158S02 | Knob, Latch |
|
- | |||||
| 27 | 3015453 | Latch-door |
|
- | |||||
| 28 | 3131357 | Handle, Latch |
|
- | |||||
| 29 | 3131101 | Cover, Plate |
|
- | |||||
| 30 | 3011597 | Burner Box |
|
- | |||||
| 31 | 3200835 | Shield, Main Front |
|
- | |||||
| 32 | 3051413 | Shield, Latch Switch |
|
- | |||||
| 33 | 3200836 | Shield-heat Baffle |
|
- | |||||
| 34 | 3200789 | Panel, Bodyside (rh) White |
|
- | |||||
| 35 | 3203397 | Screw-leveling |
|
- | |||||
| 36 | 3131973 | Rack-oven |
|
- | |||||
| 37 | 3131356 | Insert, Broiler Pan |
|
- | |||||
| 38 | 3013568 | Pan, Broiler |
|
- | |||||
| 39 | 3011519 | Bottom-oven |
|
- | |||||
| 40 | 3051162 | Glide-utility Drawer (2) |
|
Immediately | $ 8.22 | ||||
| 41 | 3015371 | Cover-burner Box |
|
- | |||||
| *32782 | 08068018 | Shield-wire |
|
- | |||||
| *32783 | 3934056 | Anti-tip Bracket |
|
- | |||||
| 11A | 665T437F01 | Shield-wool (non-illustrated) |
|
- | |||||
| 14A | 3051307 | Stud-spacer (non-illustrated) |
|
- | |||||
| 25A | 3131593 | Shield, Bimetal Latch (non-illustrated) |
|
- | |||||
| 25B | 636T144P01 | Screw Latch Knob (non-illustrated) |
|
- | |||||
| 34A | 3200792 | Panel, Bodyside (lh) White |
|
- | |||||
| 39A | 3014226 | Support-oven Bottom, (non-illustrated) |
|
- | |||||
| 39B | 3012327 | Fastener-power Cord (non-illustrated) |
|
- | |||||
| 39C | 3204582 | Insulation-back (non-illustrated) |
|
- | |||||
| 39D | 3131302 | Insulation Front Frame (non-illustrated) |
|
- | |||||
| 39E | 3131304 | Insulation-top Wrap (non-illustrated) |
|
- | |||||
| 39F | 3200834 | Shield-heat, Body Side (non-illustrated) |
|
- | |||||
| 39G | 3200833 | Insulation-wrap (non-illustrated) |
|
- | |||||
| 40A | 3131314 | Shield, Oven Top (non-illustrated) |
|
- | |||||
| 40B | 3131590 | Shield, Wall Rear (non-illustrated) |
|
- |
