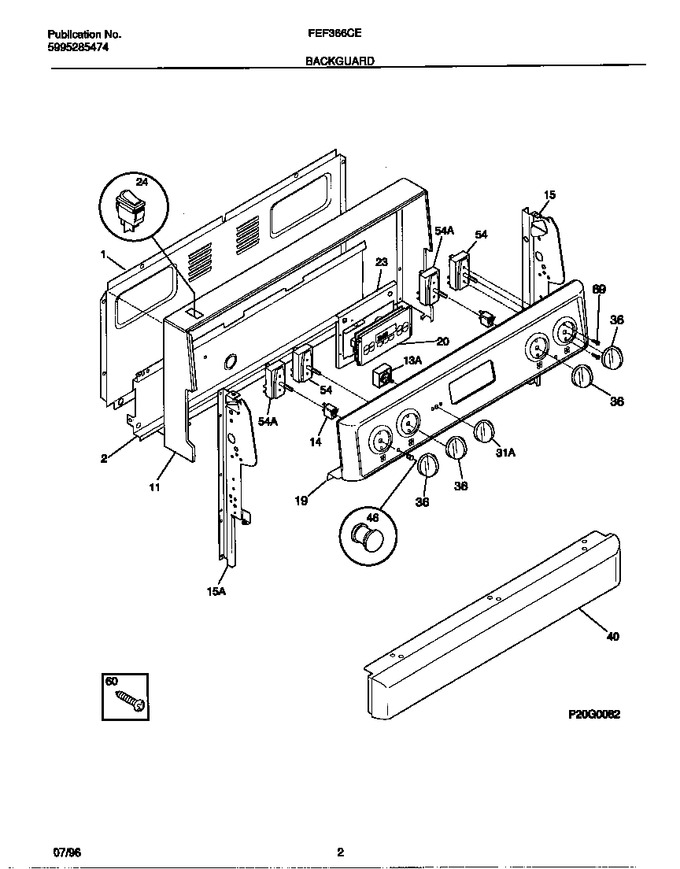

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316083701		Trim-wrapper, Almond, Top		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite   (Replaces: 316095500)			Immediately	$ 84.18
15	316023111		Support-backguard, Lh		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
19	316024490		Panel-control, Metal, Almond		Appelez-nous	-
20	316027402		Clock/timer, Electronic		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	316005608		Switch-rocker, Almond, Oven Light		Appelez-nous	-
31	316095602		Knob-warmer, Almond		Appelez-nous	-
36	316025104		Knob-control, Infinite Sw		Appelez-nous	-
40	316025809		Panel-manifold, Almond		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
69	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-
*62240	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*62241	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
14A	316022500		Light/lamp, Indicator, Red,250 V,(2)			Immediately	$ 53.57
14B	316022503		Light-lamp, Indicator, 250 V			Immediately	$ 70.16
