SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

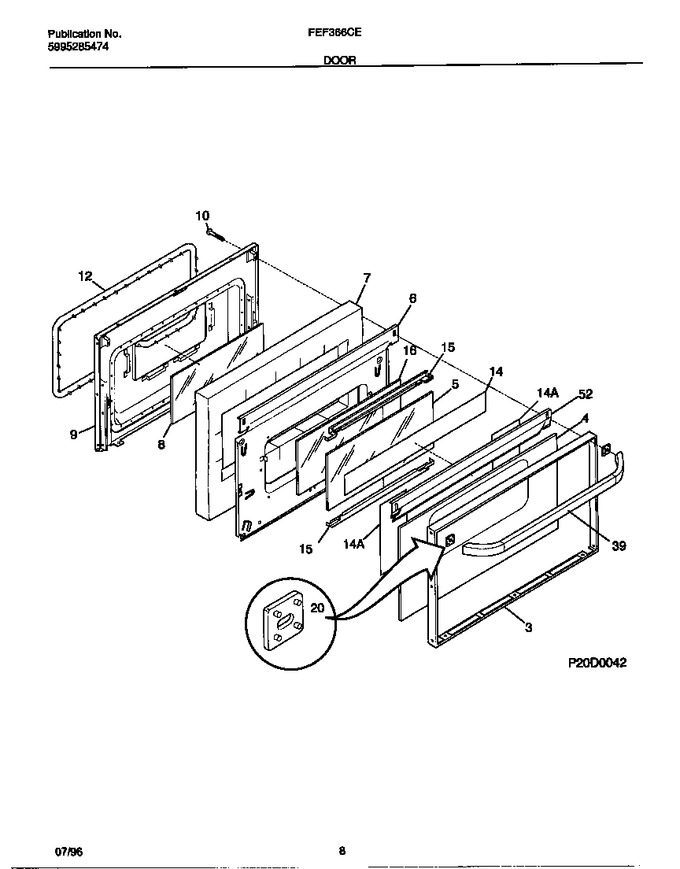

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067803		Trim-oven Door, Almond		Appelez-nous	-
4	316089004		Glass-oven Door, Almond, Outer		Appelez-nous	-
5	316088700		Glass-oven Door, Inner				$ 70.17
6	316088401		Shield-wool		Appelez-nous	-
7	316439802		Insulation, Oven Door   (Replaces: 316076400)			Immediately	$ 192.78
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
12	5303131601		Seal-oven Door				$ 374.63
14	3131361		Reflector, Aluminum Foil		Appelez-nous	-
14	3131360		Reflector, Aluminum Foil		Appelez-nous	-
15	316081401		Bracket-glass Mtg		Appelez-nous	-
16	316085700		Glass-oven Door, Heat Barrier		Appelez-nous	-
20	316055103		Spacer-handle, Almond, (2)		Appelez-nous	-
39	316060204		Handle-door, Almond, Oven		Appelez-nous	-
52	316081302		Shield-oven Door, Almond, Top		Appelez-nous	-
*62252	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
*62253	316065301		Plate Warning/caution		Appelez-nous	-
*62254	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*62255	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*62256	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*62257	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
