SELECT A DIAGRAM

01 - Cover


02 - Backguard

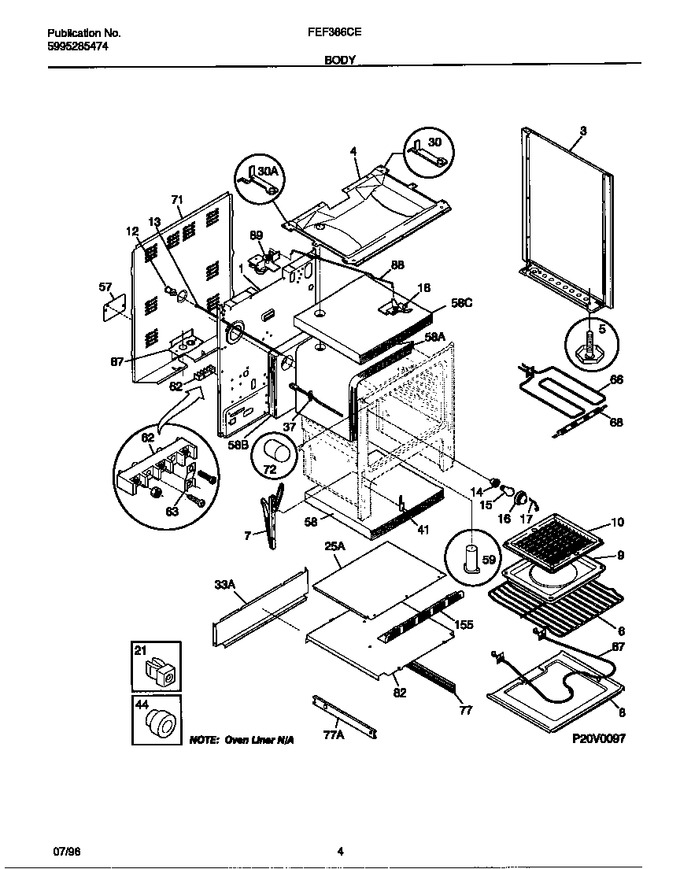

03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080801		Back-main		Appelez-nous	-
3	3200834		Shield, Heat, Body Side (not Illustrated)		Appelez-nous	-
3	316081007		Panel-bodyside, Almond, Lh (not Illustrated)		Appelez-nous	-
3	316081006		Panel, Bodyside, Almond, Rh		Appelez-nous	-
4	5303271756		Burner Box		Appelez-nous	-
6	5304531722		Rack-oven   (Replaces: 316067901)			Immediately	$ 51.05
7	316007002		Hinge-oven Door, (2)				$ 244.07
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	3205234		Insert, Broiler Pan		Appelez-nous	-
12	316027701		Switch-oven Light, Door Frame		Appelez-nous	-
13	316026800		Rod-light Switch/door				$ 36.86
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
18	316036300		Latch-door		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
25	316092401		Shield-warmer, Upper		Appelez-nous	-
30	5303283574		Bracket-hinge, Main Top Rh		Appelez-nous	-
30	5303283575		Bracket-hinge, Main Top, Lh		Appelez-nous	-
33	316095301		Shield-rear Wall, Lower		Appelez-nous	-
37	5304497424		Probe-oven Temp   (Replaces: 3204593)			Immediately	$ 38.32
41	3131570		Cover Hinge Cutout				$ 7.35
44	3131903		Bumper				$ 55.36
57	316081101		Cover-access		Appelez-nous	-
58	316054202		Insulation,oven Back				$ 76.59
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
58	3131304		Insulation, Oven Top		Appelez-nous	-
58	316047707		Insulation,oven Wrapper				$ 150.92
59	316073600		Tube-oven Vent		Appelez-nous	-
62	5303935061		Terminal Block		Appelez-nous	-
63	5301145190		Plate=ground Strap		Appelez-nous	-
66	5303051140		Element-broil				$ 202.71
67	316075103		Element-bake   (Replaces: 316075102)			Immediately	$ 42.36
68	316075300		Support-element		Appelez-nous	-
71	316015805		Shield-rear Wall		Appelez-nous	-
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
77	316094900		Rail-drawer Rh		Appelez-nous	-
77	316094901		Rail-drawer Lh		Appelez-nous	-
82	3200825		Shield, Oven Bottom		Appelez-nous	-
87	316081201		Bracket-cable Mtg		Appelez-nous	-
88	316026400		Rod-latch, Auto				$ 21.79
89	316028102		Motor-latch/lock		Appelez-nous	-
89	316097000		Insulator, Latch Motor		Appelez-nous	-
155	316095201		Shield-drawer, Front Warmer		Appelez-nous	-
*62242	3011813		Clip-wire				$ 14.79
*62243	3203550		Plug-button			Immediately	$ 15.22
*62244	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*62245	5303051099		Nut, Hex, 10-32		Appelez-nous	-
5A	5303203397		Screw-leveling				$ 14.49
5B	3934058		Anti, Tip Kit (not-illustrated)				$ 98.75
5C	316116000		Screw, Anti, Tip, (4) (not-illustrated)   (Replaces: 316078600)				$ 12.89
5D	5303288460		Nut, T,type, Leveling Screw (not Illustrated)				$ 27.14
