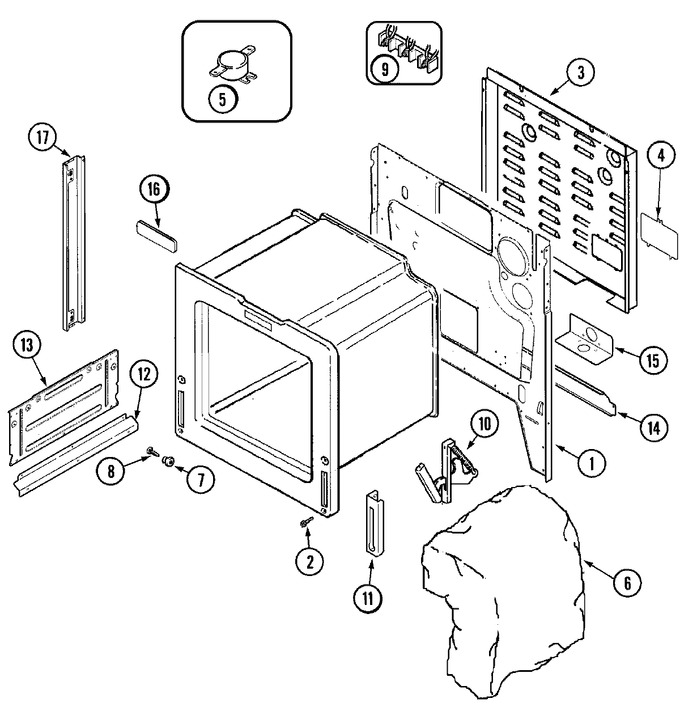

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door/drawer
03 - Oven/base
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74004174 | Back, Main | 10 |
|
- | ||||
| 2 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 3 | 74004183 | Cover, Wire (rear) | 10 |
|
- | ||||
| 3 | 74005265 | Cover, Wire (rear) | 14 |
|
- | ||||
| 4 | 74005264 | Cover, Terminal Block | 14 |
|
- | ||||
| 4 | 74004184 | Cover, Terminal Block | 10 |
|
- | ||||
| 5 | WP71001844 | Thermostat, Hi-limit (Replaces: 71001844) | 10 |
|
$ 195.41 | ||||
| 6 | 74003382 | Insulation, Back/bottom | 10 |
|
- | ||||
| 6 | 4804F039-60 | Insulation, Oven Back | 10 |
|
- | ||||
| 6 | 74003112 | Insulation, Wrap | 10 |
|
$ 65.68 | ||||
| 7 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 8 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 10 |
|
Immediately | $ 6.98 | |||
| 8 | W11693756 | Screw (8abx19/32-zn) (Replaces: 74003004) | 10 |
|
Immediately | $ 12.65 | |||
| 9 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| 10 | W10876639 | Hinge, Door (Replaces: 74003239) | 10 |
|
$ 129.21 | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 74004173 | Plate, Hinge | 10 |
|
- | ||||
| 12 | 74004176 | Extension, Heat Shield | 10 |
|
- | ||||
| 13 | 74004177 | Shield, Heat | 10 |
|
- | ||||
| 14 | 74004175 | Extension, Main Back | 10 |
|
- | ||||
| 15 | W10190166 | Bracket, Power Supply (Replaces: 74004180) | 10 |
|
$ 8.32 | ||||
| 16 | 74003406 | Plug, Lock Slot | 10 |
|
- | ||||
| 17 | 74004182 | Trim, Side (wht) | 10 |
|
- |
