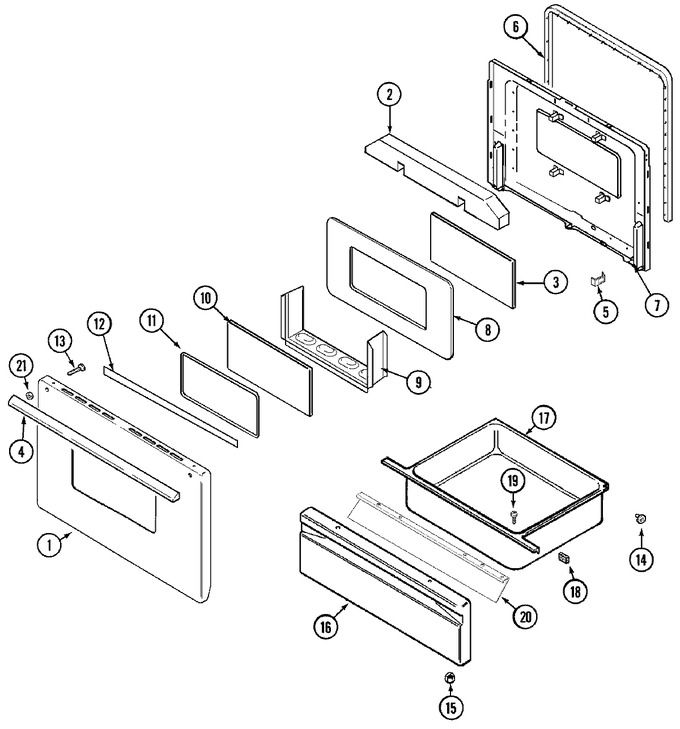

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2401F121-71		Panel, Door (wht)	10	Appelez-nous	-
1	74005223		Panel, Door (wht)	15	Appelez-nous	-
2	74001842		Insulation, Door	26	Appelez-nous	-
2	74002458		Insulation, Door	10	Appelez-nous	-
3	74002459		Glass, Door (inner)	10	Appelez-nous	-
3	74009281		Glass, Door Inner	26	Appelez-nous	-
4	WP2411F013-70		Handle, Door (chr)   (Replaces: 74001819)	10			$ 186.01
5	7112P034-60		Clip, Door	10	Appelez-nous	-
6	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
7	74003248		Lining, Door	10	Appelez-nous	-
7	74009280		Lining, Door	26	Appelez-nous	-
8	74002461		Baffle, Door	10	Appelez-nous	-
8	7101P209-60		Screw	10	Appelez-nous	-
8	74001843		Baffle, Door	26	Appelez-nous	-
9	74003048		Retainer, Glass	26	Appelez-nous	-
9	74002462		Support, Outer Glass	10	Appelez-nous	-
10	74002463		Glass, Door (outer-blk)	10	Appelez-nous	-
10	74001072		Glass, Outer Door (blk)	26	Appelez-nous	-
11	7201P017-60		Gasket, Window	10			$ 52.69
12	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
13	WP3387230		Screw   (Replaces: 74002483)	10		Immediately	$ 7.69
14	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
14	74003566		Roller, Drawer	10	Appelez-nous	-
15	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
16	74003407		Panel, Drawer (wht)	10	Appelez-nous	-
17	W11233072		Screw   (Replaces: 74004208)	10		Immediately	$ 12.62
17	71003042		Drawer, Storage	10	Appelez-nous	-
18	WP854334		Seal, Door Panel   (Replaces: 7208P009-60)	10			$ 11.95
19	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
20	W11233072		Screw   (Replaces: 74004208)	10		Immediately	$ 12.62
20	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-
21	8010P084-60		Spacer, Handle (blk)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
