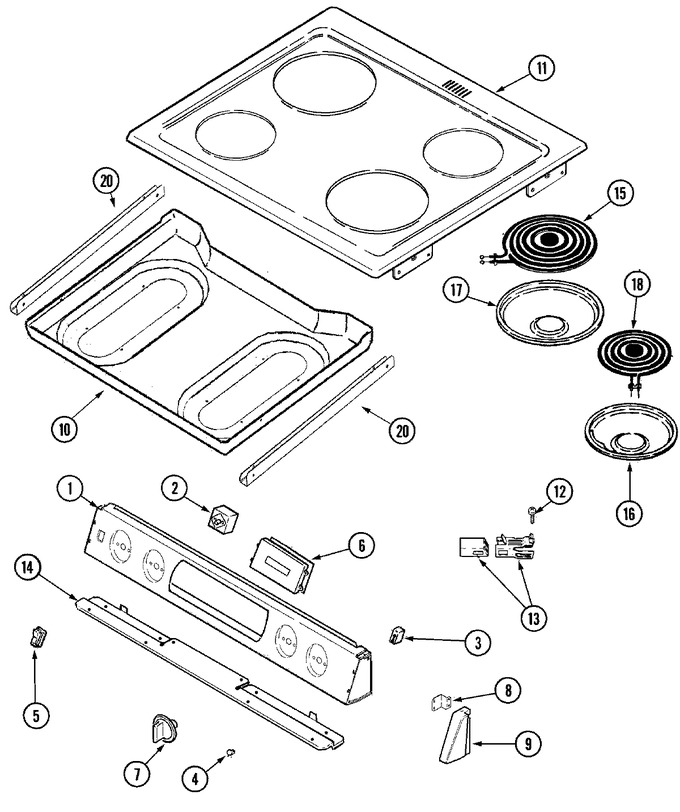

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74004267		Panel, Control (blk)	10	Appelez-nous	-
2	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
2	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	10		Immediately	$ 35.10
2	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
3	WP74004153		Light, Indicator   (Replaces: 74004153)	10		Immediately	$ 8.02
4	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P011-60)	10			$ 5.16
5	74003363		Switch, Rocker (blk)	10	Appelez-nous	-
6	74009278		Clock W/overlay (blk)	26	Appelez-nous	-
6	74004268		Overlay, Clock (blk)	10	Appelez-nous	-
6	74004266		Clock (blk)	10	Appelez-nous	-
7	74003427		Knob, Infinite Switch (blk)	10			$ 16.42
8	74005671		Bracket, End Cap	17	Appelez-nous	-
8	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
8	74004186		Bracket, End Cap	10	Appelez-nous	-
9	74004819		Cap, End (blk-rt)	13	Appelez-nous	-
9	74004601		Cap, End (rt-blk)	11	Appelez-nous	-
9	74004602		Cap, End (lt-blk)	11	Appelez-nous	-
9	74004820		Cap, End (blk-lt)	13	Appelez-nous	-
9	74004197		Cap, End (lt-blk)	10	Appelez-nous	-
9	74004196		Cap, End (rt-blk)	10	Appelez-nous	-
10	74004251		Bottom, Burner Box	10	Appelez-nous	-
10	74006046		Bottom, Burner Box	20	Appelez-nous	-
10	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	10		Immediately	$ 6.98
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	74004248		Top, Main (wht)	10	Appelez-nous	-
11	74007600		Top, Main (wht)	17	Appelez-nous	-
12	WP74004005		Screw   (Replaces: 7118P013-60)	10			$ 6.95
13	12001676		Kit, Receptacle   (Replaces: 1430306K)	10		Immediately	$ 28.45
14	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
14	74004185		Support, Control Panel	10	Appelez-nous	-
15	WP9761346		Element, Surface (8``-5t)   (Replaces: 74007159)	24		Immediately	$ 94.16
15	WPY04000035		Element (8``)   (Replaces: Y04000035)	10			$ 160.60
16	WPW10196406		Bowl, Drip (6``-chr)   (Replaces: 74001212)	10		Immediately	$ 12.05
17	WPW10196405		Bowl, Drip (8``-chr)   (Replaces: 74001213)	10		Immediately	$ 15.56
18	WPY04000036		Element (6``)   (Replaces: Y04000036)	10			$ 88.70
18	WPW10345407		Element, Surface (6``)   (Replaces: 74007158)	24		Immediately	$ 141.79
20	74005822		Bracket, Support	20	Appelez-nous	-
NI	74004786		Harness, Relay	26	Appelez-nous	-
NI	74004273		Harness, Rs Sensor	10	Appelez-nous	-
NI	74009279		Harness, Main	26	Appelez-nous	-
NI	12001323		Wire/terminal Kit	10	Appelez-nous	-
NI	74004274		Manual, Use & Care	10	Appelez-nous	-
NI	16010161		Manual, Srvc Elec/gas Range	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
