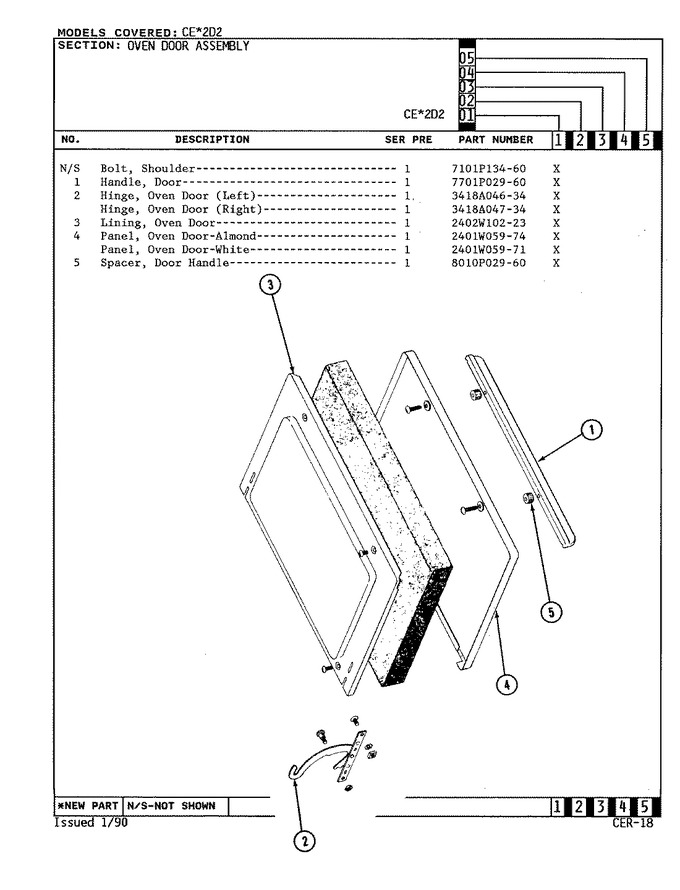

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7701P029-60 | Handle, Door (chr) | 1 |
|
- | ||||
| 1 | 7101P134-60 | Bolt, Special | 1 |
|
- | ||||
| 2 | 3418A047-34 | Hinge, Door (rt) | 1 |
|
- | ||||
| 2 | 3418A046-34 | Hinge, Door (lt) | 1 |
|
- | ||||
| 3 | 2402W102-23 | Lining, Ov Dr | 1 |
|
- | ||||
| 4 | 2401W059-71 | Panel, Oven Door (wht) | 1 |
|
- | ||||
| 5 | 8010P029-60 | Spacer, Door Handle | 1 |
|
- |
