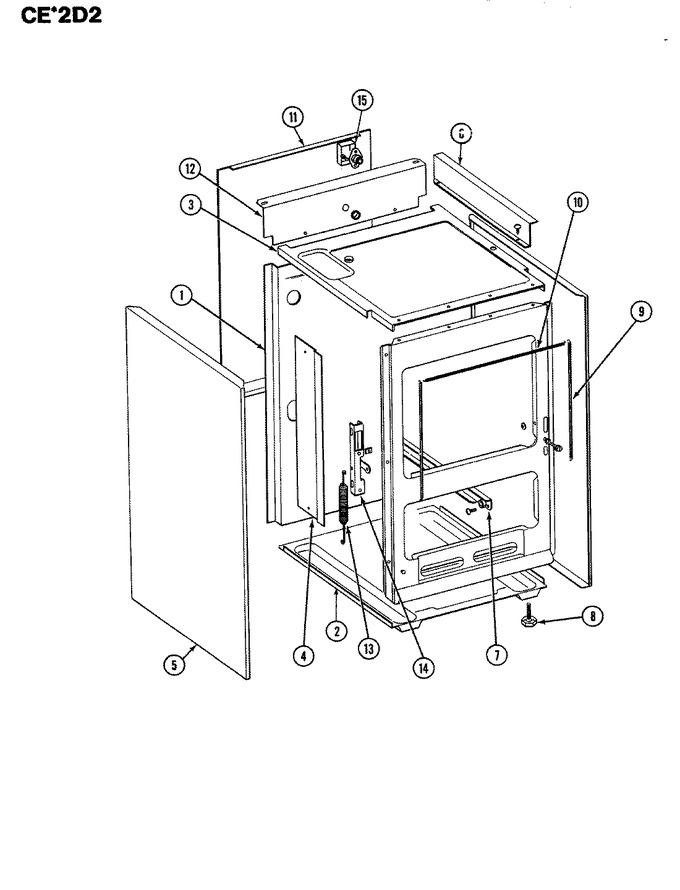

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F120-80 | Back Main | 1 |
|
- | ||||
| 2 | 4003A014-80 | Base, Main | 1 |
|
- | ||||
| 3 | 4011F150-80 | Bottom Burner Box | 1 |
|
- | ||||
| 4 | 3818F041-51 | Channel, Air Chute | 1 |
|
- | ||||
| 5 | 2618F070-71 | Panel, Side | 1 |
|
- | ||||
| 6 | 3604F100-51 | Raceway Wire | 1 |
|
- | ||||
| 7 | 3406F018-80 | Runner Utility Dr Lt | 1 |
|
- | ||||
| 7 | 3406F021-80 | Runner Utility Dr Rt | 1 |
|
- | ||||
| 8 | Y7101P25460 | Leg, Leveling | 1 |
|
- | ||||
| 9 | 7212P015-60 | Seal, Door (side) | 1 |
|
$ 45.93 | ||||
| 10 | 7212P014-60 | Seal, Door (top) | 1 |
|
$ 48.10 | ||||
| 11 | 3604F144-51 | Shield, Back Wire | 1 |
|
- | ||||
| 12 | 3604F145-51 | Shield, Burner Box Wire | 1 |
|
- | ||||
| 13 | 7803P032-60 | Spring, Oven Door | 1 |
|
$ 4.83 | ||||
| 13 | 3807F281-80 | Support, Drawer Track | 1 |
|
- | ||||
| 14 | 3807A292-34 | Support, Hinge (lt) | 1 |
|
- | ||||
| 14 | 3807A293-34 | Support, Hinge (rt) | 1 |
|
- | ||||
| 15 | 7403P160-60 | Switch, Hi-limit | 1 |
|
- |
