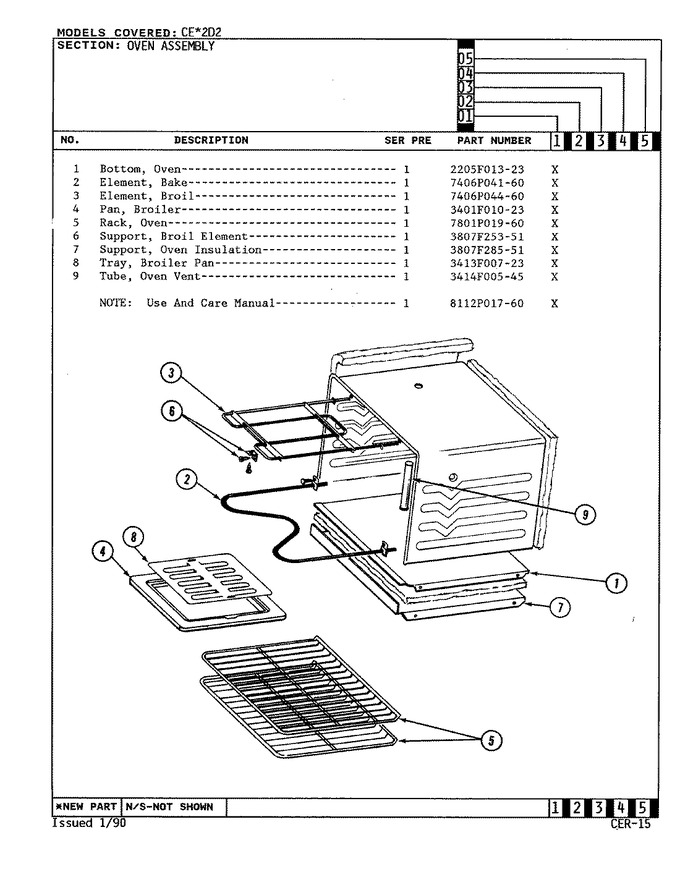

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2205F013-23 | Bottom, Oven | 1 |
|
- | ||||
| 2 | WP74010761 | Element, Bake (Replaces: 7406P041-60) | 1 |
|
$ 108.93 | ||||
| 3 | 7406P044-60 | Element, Broil | 1 |
|
- | ||||
| 4 | 4396923 | Pan, Broiler (Replaces: 3401F010-23) | 1 |
|
Immediately | $ 52.04 | |||
| 5 | 7801P019-60 | Rack, Oven | 1 |
|
- | ||||
| 6 | 3807F253-51 | Support, Broil Element | 1 |
|
- | ||||
| 7 | 3807F285-51 | Support, Insulation | 1 |
|
- | ||||
| 8 | 4396923 | Tray, Broiler (Replaces: 3413F007-23) | 1 |
|
Immediately | $ 52.04 | |||
| 9 | 3414F005-45 | Tube, Oven Vent | 1 |
|
- | ||||
| NI | 8112P017-60 | Manual, Use & Care | 1 |
|
- |
