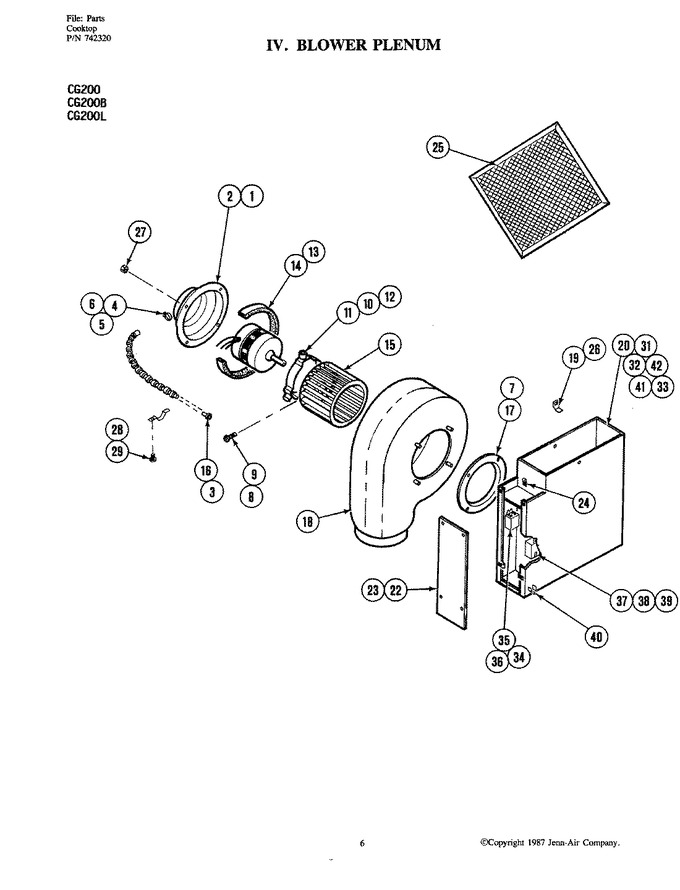

01 - Blower Plenum
02 - Burner Assembly
03 - Control Assembly
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE81-03521A | Motor Cover Assembly (Replaces: 700027) | 11 |
|
$ 208.41 | ||||
| 2 | 708863 | Cover,motor | 11 |
|
- | ||||
| 3 | Y707758 | Conduit | 11 |
|
- | ||||
| 4 | 707766 | Connector | 11 |
|
- | ||||
| 5 | 715780 | Clamp, Cable | 11 |
|
- | ||||
| 6 | Y707335 | Clip | 11 |
|
- | ||||
| 7 | 702889 | Locknut Cap, W/nylon Insert | 11 |
|
- | ||||
| 8 | 707161 | Nut | 11 |
|
- | ||||
| 9 | Y707402 | Screw | 11 |
|
- | ||||
| 10 | WP71003558 | Isolator (Replaces: Y708926) | 11 |
|
$ 11.47 | ||||
| 11 | 707407 | Screw | 11 |
|
$ 6.42 | ||||
| 12 | Y707393 | Band, Motor | 11 |
|
- | ||||
| 13 | 707704K | Motor (Replaces: Y707704) | 11 |
|
Immediately | $ 352.01 | |||
| 14 | Y715957 | Foam, Urethane | 11 |
|
- | ||||
| 15 | WPY707985 | Wheel, Blower (Replaces: Y707985) | 11 |
|
Immediately | $ 145.55 | |||
| 16 | 708185 | Bushing | 11 |
|
- | ||||
| 17 | Y702296 | Adapter, Restrictor Ring | 11 |
|
- | ||||
| 18 | 712008 | Scroll, Blower Assy. | 11 |
|
- | ||||
| 19 | Y707688 | Retainer, Filter | 11 |
|
- | ||||
| 20 | 712312 | Plenum | 11 |
|
- | ||||
| 22 | 704547 | Plate, Cover | 11 |
|
- | ||||
| 23 | WP59002061 | Screw (Replaces: Y707172) | 11 |
|
$ 6.98 | ||||
| 24 | Y707831 | Clip | 11 |
|
- | ||||
| 25 | WP707929 | Filter, Grease (Replaces: 707929) | 11 |
|
Immediately | $ 44.51 | |||
| 26 | WP71001171 | Screw (Replaces: Y701379) | 11 |
|
$ 6.26 | ||||
| 27 | WPY707702 | Locknut (Replaces: Y707702) | 11 |
|
Immediately | $ 6.26 | |||
| 28 | 712310 | Tinnerman | 11 |
|
- | ||||
| 29 | WP71001171 | Screw (Replaces: Y701379) | 11 |
|
$ 6.26 | ||||
| 31 | 704554 | Relief, Strain | 11 |
|
- | ||||
| 32 | W11233072 | Screw (Replaces: Y708733) | 11 |
|
Immediately | $ 12.62 | |||
| 33 | 704548 | Cord, Power | 11 |
|
- | ||||
| 34 | Y700556 | Clip, J | 11 |
|
- | ||||
| 35 | Y704541 | Relay | 11 |
|
- | ||||
| 36 | WP59002061 | Screw (Replaces: Y707172) | 11 |
|
$ 6.98 | ||||
| 37 | Y704540 | Module, Spark | 11 |
|
- | ||||
| 38 | WP488130 | Nut (Replaces: Y701396) | 11 |
|
$ 6.27 | ||||
| 39 | WPW10068250 | Screw (Replaces: Y700582) | 11 |
|
$ 3.66 | ||||
| 40 | 704542 | Plug, Male Load | 11 |
|
- | ||||
| 41 | WP71001171 | Screw (Replaces: Y707745) | 11 |
|
$ 6.26 | ||||
| 42 | 704514 | Wire, Green | 11 |
|
- | ||||
| NI | WPA0317601 | Nut, Crimp (for Wires) (Replaces: Y702029) | 11 |
|
$ 7.48 | ||||
| NI | 701958 | Clip, Tinnerman | 11 |
|
- |
