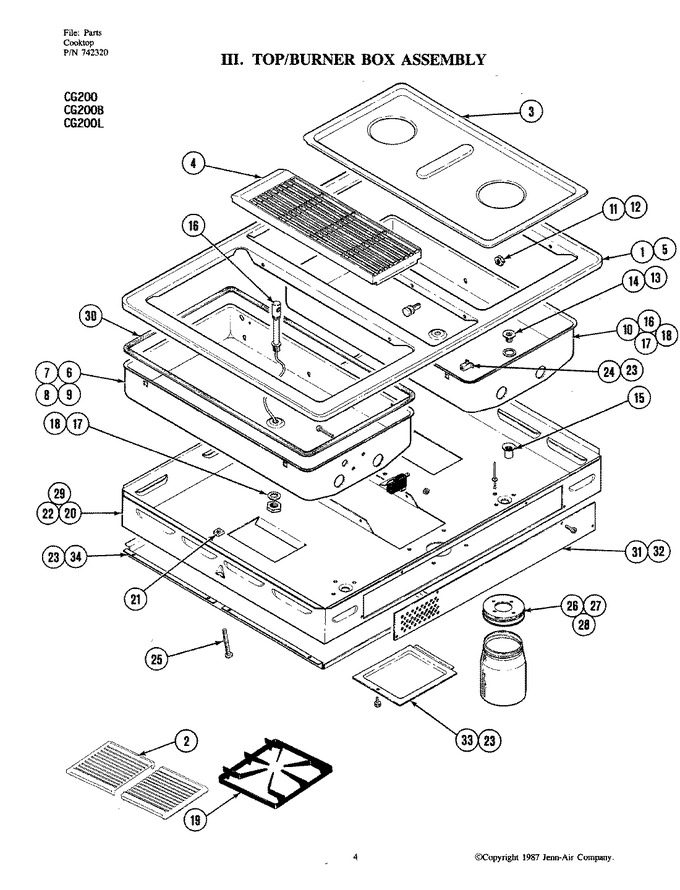

SELECT A DIAGRAM
01 - Blower Plenum
02 - Burner Assembly
03 - Control Assembly
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 712313 | Top, Black | 11-12 |
|
- | ||||
| 1 | 712309 | Top Assembly, Stainless Steel | 11-12 |
|
- | ||||
| 1 | 712523 | Almond | 13 |
|
- | ||||
| 1 | 712522 | Top, Stainless Steel | 13 |
|
- | ||||
| 1 | 712519 | Top, Black | 13 |
|
- | ||||
| 1 | 712314 | Top Assembly (almond) | 11-12 |
|
- | ||||
| 2 | Y704544 | Grate, Grill | 11 |
|
- | ||||
| 3 | Y712274 | Pan, Aeration (blk) | 11 |
|
- | ||||
| 4 | Y704570 | Grill, Air (blk) | 11 |
|
- | ||||
| 5 | W11233072 | Screw (Replaces: Y707347) | 11 |
|
Immediately | $ 12.62 | |||
| 6 | 704528 | Pan, Grill | 11 |
|
- | ||||
| 7 | DE81-04441A | Screw (Replaces: 702380) | 11 |
|
$ 329.62 | ||||
| 8 | 7403P620-60 | Switch, Micro (Replaces: Y704533) | 11 |
|
$ 141.22 | ||||
| 9 | 715617 | Washer (teflon) | 11 |
|
- | ||||
| 10 | 704529 | Pan, Grill (rt) | 11 |
|
- | ||||
| 11 | 7403P620-60 | Switch, Micro (Replaces: Y704533) | 11 |
|
$ 141.22 | ||||
| 12 | 704536 | Pin, Locator | 11 |
|
- | ||||
| 13 | 702747 | Washer, Teflon | 11 |
|
- | ||||
| 14 | 702748 | Nut, Drain Tube | 11 |
|
- | ||||
| 15 | 704546 | Tube, Drain | 11 |
|
- | ||||
| 16 | WP71002179 | Ignitor, Spark (Replaces: 704535) | 11 |
|
$ 181.49 | ||||
| 17 | 704568 | Lockwasher | 11 |
|
$ 13.02 | ||||
| 18 | Y703856 | Nut, Jam | 11 |
|
$ 5.53 | ||||
| 19 | Y704543 | Grate, Surface | 11 |
|
- | ||||
| 20 | Y704500 | Box, Burner | 11 |
|
- | ||||
| 21 | M0282009 | Nut,square (Replaces: Y707124) | 11 |
|
$ 12.06 | ||||
| 22 | WPW10253196 | Screw (Replaces: Y707113) | 11 |
|
$ 3.76 | ||||
| 23 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 24 | Y700503 | Clip, Retainer | 11 |
|
- | ||||
| 25 | Y707121 | Screw | 11 |
|
- | ||||
| 26 | Y707870 | Lid, Jar | 11 |
|
- | ||||
| 27 | WPY707869 | Jar, Drain (Replaces: Y707869) | 11 |
|
$ 61.43 | ||||
| 28 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | 11 |
|
$ 12.14 | ||||
| 29 | WP74003976 | Washer (Replaces: 702592) | 11 |
|
$ 6.47 | ||||
| 30 | 704526 | Seal, Foam | 11 |
|
- | ||||
| 31 | Y704538 | Cover, Front | 11 |
|
- | ||||
| 32 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 33 | 702333 | Cover, Access(r.h) | 11 |
|
- | ||||
| 34 | 3601F261-51 | Baffle, Bottom (lt) (Replaces: 704527) | 11 |
|
$ 216.98 |
