01 - Blower Plenum

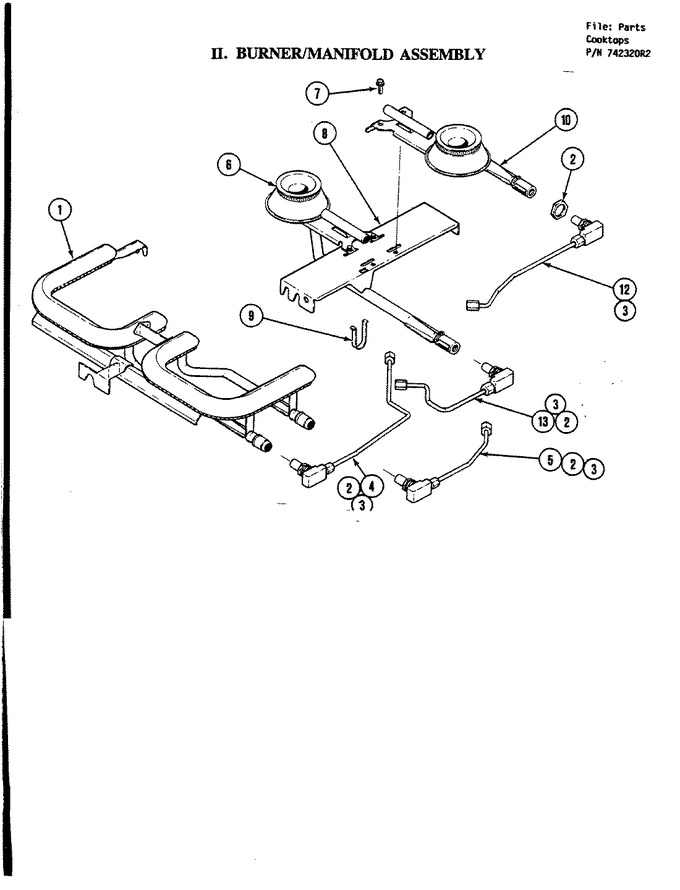

02 - Burner Assembly
03 - Control Assembly
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y712601 | Burner, Grill | 14 |
|
$ 304.99 | ||||
| 1 | Y712601 | Burner, Grill (Replaces: Y712301) | 11-13 |
|
$ 304.99 | ||||
| 2 | Y704588 | Nut, 3/4`` Hex | 11 |
|
- | ||||
| 3 | WP245183 | Nut, Compression (Replaces: Y704589) | 11 |
|
$ 7.01 | ||||
| 4 | 704701 | Tube, Rear | 11 |
|
- | ||||
| 5 | Y704702 | Tube, Front (lf) | 11 |
|
- | ||||
| 6 | Y704518 | Burner, Rear | 11 |
|
$ 95.29 | ||||
| 6 | 74005189 | Burner, Rear (Replaces: Y705402) | 14 |
|
$ 211.73 | ||||
| 7 | WP90767 | Screw (Replaces: 715773) | 11 |
|
Immediately | $ 7.04 | |||
| 8 | WP3801F403-80 | Bracket, Burner (Replaces: Y704519) | 11 |
|
$ 71.17 | ||||
| 9 | 704549 | Clip, Spring | 11 |
|
- | ||||
| 10 | WP7505P283-60 | Burner, Front (Replaces: Y705401) | 14 |
|
$ 211.46 | ||||
| 10 | Y704517 | Burner, Front | 11 |
|
- | ||||
| 12 | 704700 | Tube (rf) | 11 |
|
- | ||||
| 13 | 704699 | Tube (rr) | 11 |
|
- | ||||
| NI | 704590 | Sleeve | 11 |
|
- |
