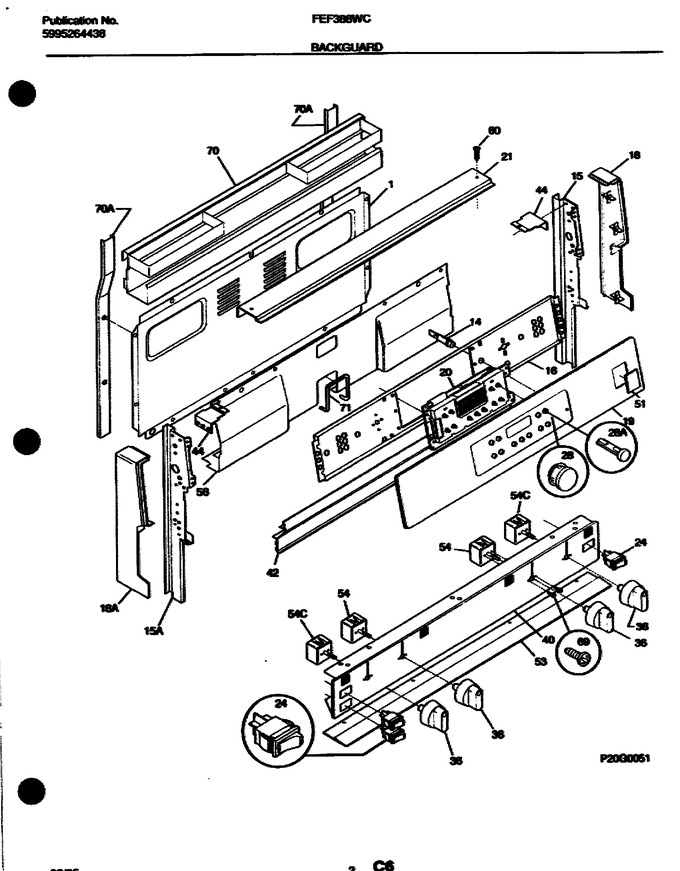

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
14	316034801		Light-indicator		Appelez-nous	-
14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
16	316042605		Plate, Instrument Mtg, Black		Appelez-nous	-
18	316021800		End Cap, Black, Rh				$ 81.32
19	316028347		Panel-control, Stainless		Appelez-nous	-
19	5303272836		Clip - Backguard		Appelez-nous	-
21	316039204		Trim-canopy/shield		Appelez-nous	-
28	316015102		Push Button, Clock/timer/eoc, Black				$ 50.35
36	316084900		Knob-control, 4		Appelez-nous	-
40	316062364		Panel-manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
51	316082300		Nameplate		Appelez-nous	-
53	3204623		Shield-heat, Extrusion		Appelez-nous	-
56	316074904		Deflector-flue, Black		Appelez-nous	-
60	5303308556		Screw, 8a X 1		Appelez-nous	-
69	5303292005		Screw-switch Mtg, 8-32 X 3/16, Sw To Cntl Pnl, (8)		Appelez-nous	-
70	316069700		Rack-spice, Stainless		Appelez-nous	-
71	316071901		Gasket-edge, Deflector B/g		Appelez-nous	-
15A	316023111		Support-backguard, Lh		Appelez-nous	-
28A	316036900		Shaft-push Button, Clock/timer/eoc, (11)				$ 11.24
70A	5303500001		Support, Spice Rack		Appelez-nous	-
F20	316064503		Clock/timer, Electronic		Appelez-nous	-
F24	316083101		Switch-rocker, Rh				$ 85.01
F24	316083100		Switch-rocker, Lh				$ 89.31
F54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
F54C	5304528972		Switch-6/8   (Replaces: 316049800)				$ 47.78
NI	3018008		Shield-inf Switch		Appelez-nous	-
NI	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316035700		Lens-light/lamp, Indicator		Appelez-nous	-
NI	316078000		Terminal-shield		Appelez-nous	-
NI	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
NI	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
NI	316001177		Harness-wiring,main		Appelez-nous	-
NI	5303290288		Fastener		Appelez-nous	-
