SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer

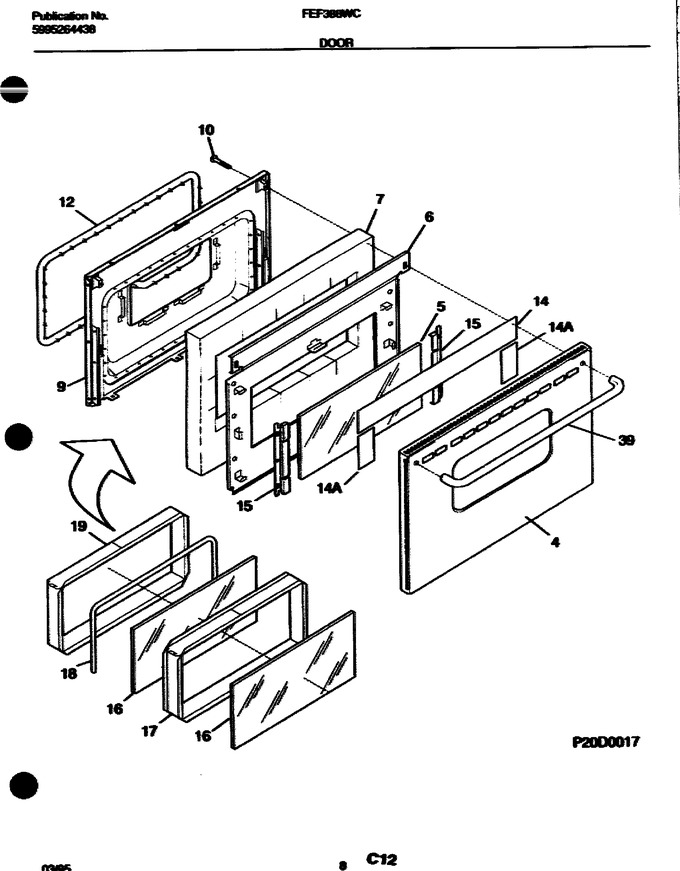

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316079300		Panel-oven Door, Stainless, Outer		Appelez-nous	-
5	316050305		Glass-oven Door, Inner				$ 94.99
6	316084002		Shield-insulation		Appelez-nous	-
7	316076402		Insulation, Oven Door		Appelez-nous	-
9	316066603		Liner-oven Door		Appelez-nous	-
10	316001006		Screw-handle Mtg, 10-32		Appelez-nous	-
12	5303131601		Seal-oven Door				$ 374.63
14	5303208656		Reflector, Aluminum Foil		Appelez-nous	-
15	5303209510		Bracket-glass Mtg		Appelez-nous	-
16	5303209512		Glass-oven Door, Heat Barrier, (2)				$ 150.41
17	5303209517		Spacer-glass		Appelez-nous	-
18	5303211085		Seal-rope, 0.25 Dia				$ 44.00
19	316067600		Collar-glass Mtg		Appelez-nous	-
39	316079500		Handle-door/drawer, Stainless				$ 289.70
14A	5303208655		Reflector, Aluminum Foil		Appelez-nous	-
NI	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
NI	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
NI	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
NI	316085500		Bracket-window		Appelez-nous	-
NI	316065301		Plate Warning/caution		Appelez-nous	-
NI	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
NI	5303212762		Screw,8-18 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
