Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	316063503		Shield-panel		Appelez-nous	-
4	08067785		Screw,hex Washer Head, 8-18(ab) X 1/2		Appelez-nous	-
4	316079400		Panel-drawer, Stainless		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316035527		Main Top Assy, Glass/steel, Enamel, Black		Appelez-nous	-
16	5303271892		Gusset-mtg Lh		Appelez-nous	-
16	5303271891		Gusset-mtg Rh		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
36	316023301		Clip, Spring, Element Mtg, (4) (ni)		Appelez-nous	-
36	316077901		Panel-element Mtg, Glass Top		Appelez-nous	-
36	316041001		Stud, Index, Top Element (ni)		Appelez-nous	-
39	316079500		Handle-door/drawer, Stainless				$ 289.70
44	3131903		Bumper				$ 55.36
50	316072100		Bushing, Wire		Appelez-nous	-
51	316034801		Light-indicator		Appelez-nous	-
52	316078100		Spring-element Mtg		Appelez-nous	-
60	5303281379		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
15A	5303305628		Limiter Switch, Small/6 Inch		Appelez-nous	-
15B	5303305630		Limiter Switch Dual, Dual Coil		Appelez-nous	-
18A	5303273063		Hinge-main Top (lh)				$ 48.41
F15A	318198817		Element, Surface, Coil, Small/6 Inch, W/limit Switch   (Replaces: 316010200)			Immediately	$ 192.78
F15B	316049700		Element-surface, Dual Coil, 8 Inch, W/limit Switch		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	5309951550		Cleaner-cooktop		Appelez-nous	-
NI	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
NI	316078000		Terminal-shield		Appelez-nous	-
NI	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
NI	316035700		Lens-light/lamp, Indicator		Appelez-nous	-
NI	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-

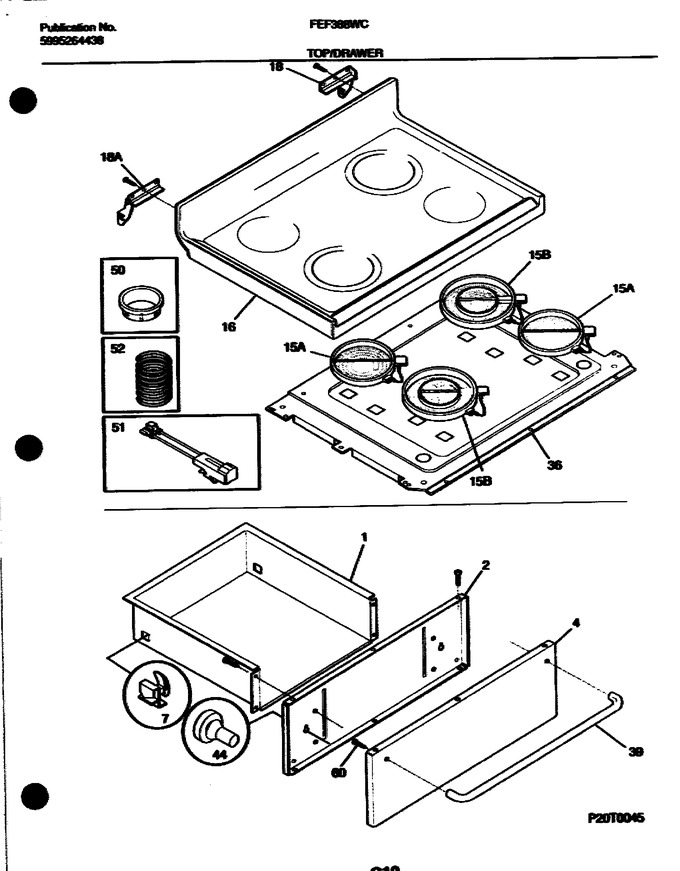

    View Diagram in Separate Window       Print Part List
