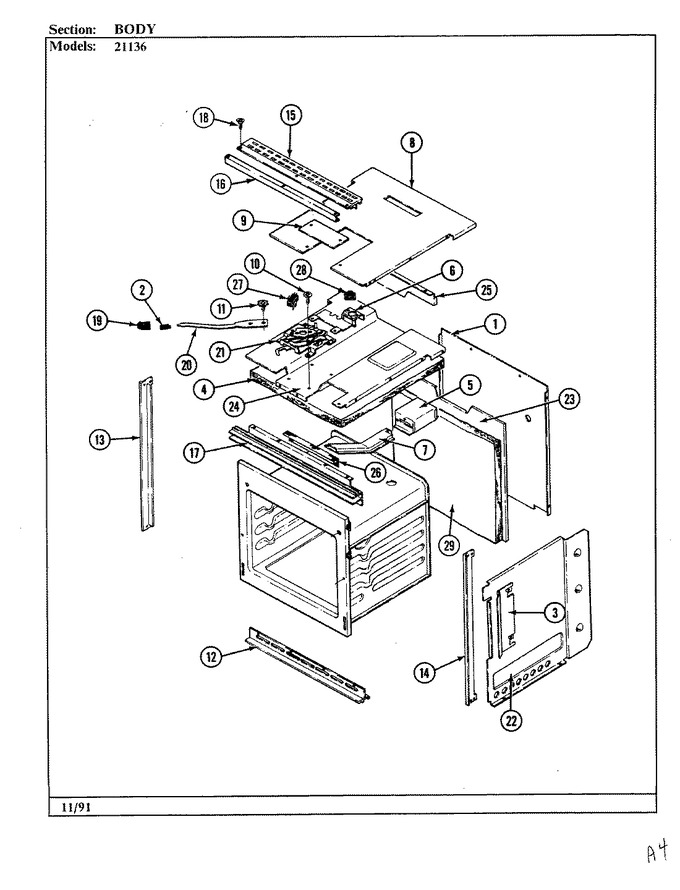

01 - Body
02 - Control Panel
03 - Door
04 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F121-51 | Back, Main | 80 |
|
- | ||||
| 2 | 7112P003-60 | Clip, Latch Handle | 80 |
|
- | ||||
| 3 | 3601F130-51 | Baffle, Side | 80 |
|
- | ||||
| 4 | 7002P111-60 | Insulation, Top & Back | 80 |
|
- | ||||
| 5 | 4006W046-15 | Box, Vent | 80 |
|
- | ||||
| 6 | 3801F128-45 | Bracket, Hi Limit | 80 |
|
- | ||||
| 7 | 3818W002-15 | Channel, Vent Assembly | 80 |
|
- | ||||
| 8 | 4005F202-51 | Cover, Box | 80 |
|
- | ||||
| 9 | 4005F160-45 | Cover, Lock | 80 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 80 |
|
Immediately | $ 6.85 | |||
| 11 | WP4159193 | Screw (Replaces: 7101P115-60) | 80 |
|
$ 4.29 | ||||
| 12 | 7706P153-60 | Extrusion, Bottom (blk) | 80 |
|
- | ||||
| 13 | 7750P016-60 | Extrusion, Side-l | 82 |
|
- | ||||
| 13 | 7706P117-60 | Extrusion, Side-l | 80 |
|
- | ||||
| 13 | 7750P031-60 | Extrusion, Side (lt-blk) | 84 |
|
- | ||||
| 14 | 7706P118-60 | Extrusion, Side-r | 80 |
|
- | ||||
| 14 | 7750P032-60 | Extrusion, Side (rt-blk) | 84 |
|
- | ||||
| 14 | 7750P017-60 | Extrusion, Side-r | 82 |
|
- | ||||
| 15 | 7706P114-60 | Extrusion, Top | 80 |
|
- | ||||
| 16 | 7706P185-60 | Extrusion, Top Front | 80 |
|
- | ||||
| 17 | 7103P051-60 | Nut, Snap | 80 |
|
- | ||||
| 17 | 7103P040-60 | Nut, Snap (wht) | 80 |
|
- | ||||
| 17 | 7756P006-60 | Extrusion, Vent | 80 |
|
- | ||||
| 17 | 7756P023-60 | Extrusion, Vent | 82 |
|
- | ||||
| 17 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 80 |
|
$ 9.89 | ||||
| 18 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 80 |
|
$ 15.94 | ||||
| 19 | 7701P068-60 | Handle, Latch (blk) | 80 |
|
- | ||||
| 20 | 8009P011-60 | Lever, Latch | 80 |
|
- | ||||
| 21 | 8002P072-60 | Latch Assy. (Replaces: 8002P016-60) | 80 |
|
$ 306.52 | ||||
| 22 | 2618F053-51 | Panel, Side (rt) | 80 |
|
- | ||||
| 22 | 2618F054-51 | Panel, Side (lt) | 80 |
|
- | ||||
| 23 | 3804F096-51 | Retainer, Rear | 80 |
|
- | ||||
| 24 | 3804F053-51 | Retainer,top | 80 |
|
- | ||||
| 25 | 3604F101-80 | Shield, Air | 80 |
|
- | ||||
| 26 | 3604F048-80 | Shield, Terminal | 80 |
|
- | ||||
| 27 | 7101P035-60 | Screw, Switch | 80 |
|
- | ||||
| 27 | 7403P007-60 | Switch, Door Lock | 80 |
|
- | ||||
| 28 | 7403P063-60 | Switch, High Limit | 80 |
|
$ 156.41 | ||||
| 29 | 7002P110-60 | Insulation, Top & Rear | 80 |
|
- | ||||
| 29 | 7002P112-60 | Insulation, Top & Back | 80 |
|
- |
