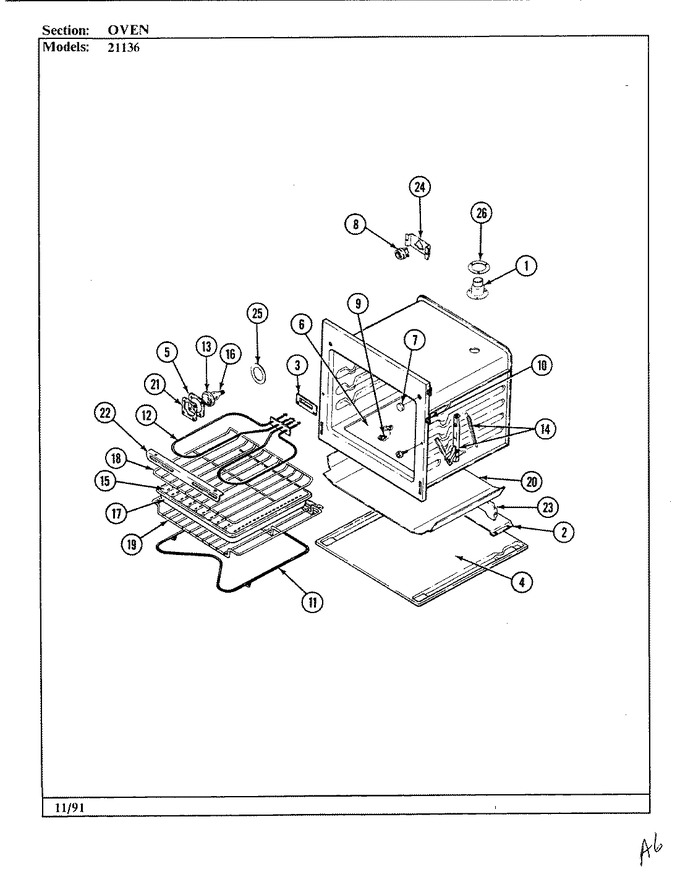

01 - Body
02 - Control Panel
03 - Door
04 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7505P018-60 | Catalyst Burner | 80 |
|
- | ||||
| 1 | 7101P287-60 | Screw, Metal Grounding | 80 |
|
$ 12.03 | ||||
| 2 | 3601F005-80 | Baffle, Base | 80 |
|
- | ||||
| 3 | 7201P003-60 | Gasket, Element | 80 |
|
- | ||||
| 4 | 4003F011-80 | Base, Wall Oven | 80 |
|
- | ||||
| 4 | WP7101P485-60 | Screw, Base (Replaces: 7101P084-60) | 80 |
|
$ 26.33 | ||||
| 5 | 7201P015-60 | Gasket, Lamp Retainer | 80 |
|
- | ||||
| 6 | 2205F003-19 | Bottom, Oven | 88 |
|
- | ||||
| 6 | 2205F003-15 | Bottom, Oven (upper) | 80 |
|
- | ||||
| 7 | 8003P009-60 | Bumper, Door (square) | 86 |
|
- | ||||
| 7 | 8003P002-60 | Bumper Door (round) | 80 |
|
- | ||||
| 8 | 7408P002-60 | Receptacle, Lamp | 80 |
|
- | ||||
| 9 | 4005F011-45 | Cover,t-stat Bulb Hole | 80 |
|
- | ||||
| 9 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 80 |
|
Immediately | $ 11.07 | |||
| 10 | 7112P020-60 | Clip, Oven Front | 80 |
|
- | ||||
| 11 | WPY04000066 | Element Bake (Replaces: 7406P013-60) | 80 |
|
Immediately | $ 70.53 | |||
| 12 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 80 |
|
$ 160.58 | ||||
| 13 | 7902P057-60 | Glass, Lamp Guard | 80 |
|
- | ||||
| 14 | 7106A019-60 | Hinge, Upper | 80 |
|
- | ||||
| 15 | 4396923 | Insert, Broil Pan (Replaces: 3413F013-19) | 88 |
|
Immediately | $ 52.04 | |||
| 15 | 4396923 | Insert, Broiler Pan (Replaces: 3413F013-15) | 80 |
|
Immediately | $ 52.04 | |||
| 16 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 80 |
|
Immediately | $ 1.98 | |||
| 16 | 7002P094-60 | Insulation, Lamp Housing | 80 |
|
- | ||||
| 16 | 4001W012-51 | Housing Lamp | 80 |
|
- | ||||
| 17 | 3401F014-15 | Pan, Broiler | 80 |
|
- | ||||
| 17 | 3401F014-19 | Pan, Broil | 88 |
|
- | ||||
| 18 | 7801P005-60 | Rack | 80 |
|
- | ||||
| 19 | 7801P007-60 | Rack, Offset | 80 |
|
- | ||||
| 20 | 3804W034-51 | Retainer, Bottom | 80 |
|
- | ||||
| 20 | 7002P007-60 | Insulation, Botton | 80 |
|
- | ||||
| 21 | 7101P287-60 | Screw, Metal Grounding | 80 |
|
$ 12.03 | ||||
| 21 | 3804F011-45 | Retainer | 80 |
|
- | ||||
| 22 | 3807F176-15 | Support, Broil Element | 80 |
|
- | ||||
| 23 | 3807F137-80 | Support | 80 |
|
- | ||||
| 24 | 3801F024-51 | Bracket | 80 |
|
- | ||||
| 25 | 7201P014-60 | Gasket, Housing | 80 |
|
- | ||||
| 26 | 7201P016-60 | Gasket | 80 |
|
- |
