SELECT A DIAGRAM

01 - Body

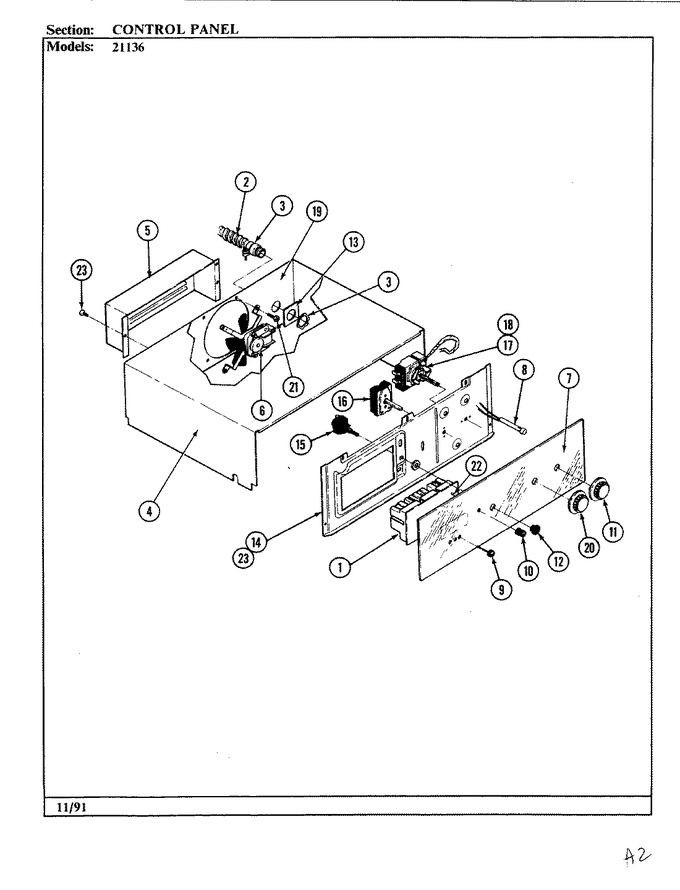

02 - Control Panel


03 - Door


04 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7601P053-60		Clock	80	Appelez-nous	-
2	8018P002-60		Sleeve, Tube	80	Appelez-nous	-
2	7434P006-60		Conduit, Flexible	80	Appelez-nous	-
3	7417P003-60		Connector, Cable	80	Appelez-nous	-
3	7417P017-60		Connector, Cable	85			$ 9.81
4	4005F150-51		Cover, Wire	80	Appelez-nous	-
5	4005F177-51		Cover, Fan	80	Appelez-nous	-
6	8008P004-60		Grommet	80	Appelez-nous	-
6	7427P006-60		Fan Assembly	80	Appelez-nous	-
7	7912P041-60		Glass, Control Panel	80	Appelez-nous	-
8	7414P004-60		Insulator, Terminal	80	Appelez-nous	-
8	5700A236-60		Light, Indicator	80	Appelez-nous	-
9	7711P171-60		Knob, Clock (button-blk)	80			$ 19.90
10	7711P427-60		Knob, Clock	80	Appelez-nous	-
11	7735P020-60		Knob, Thermostat	80	Appelez-nous	-
12	7214P007-60		Sleeve, Switch (blk)	80	Appelez-nous	-
13	3605F131-51		Plate, Reinforcement	80	Appelez-nous	-
14	3605F113-80		Plate, Backing	80	Appelez-nous	-
15	7403P109-60		Switch, Push (blk)	80	Appelez-nous	-
16	7403P023-60		Switch, Selector	80	Appelez-nous	-
17	7404P039-60		Thermostat, Upper	80	Appelez-nous	-
17	7101P279-60		Screw W/washer	80	Appelez-nous	-
17	7003P033-60		Insulation Thermostat	80	Appelez-nous	-
18	7101P280-60		Screw W/washer (blk)	80	Appelez-nous	-
19	3605F164-51		Plate, Conduit	80	Appelez-nous	-
20	7739P026-60		Knob, Selector	80	Appelez-nous	-
21	7101P079-60		Screw	80	Appelez-nous	-
22	8312P017-60		Shaft, Clock	80	Appelez-nous	-
23	WP7101P126-60		Screw   (Replaces: 7101P061-60)	80		Immediately	$ 6.85

    View Diagram in Separate Window       Print Part List
