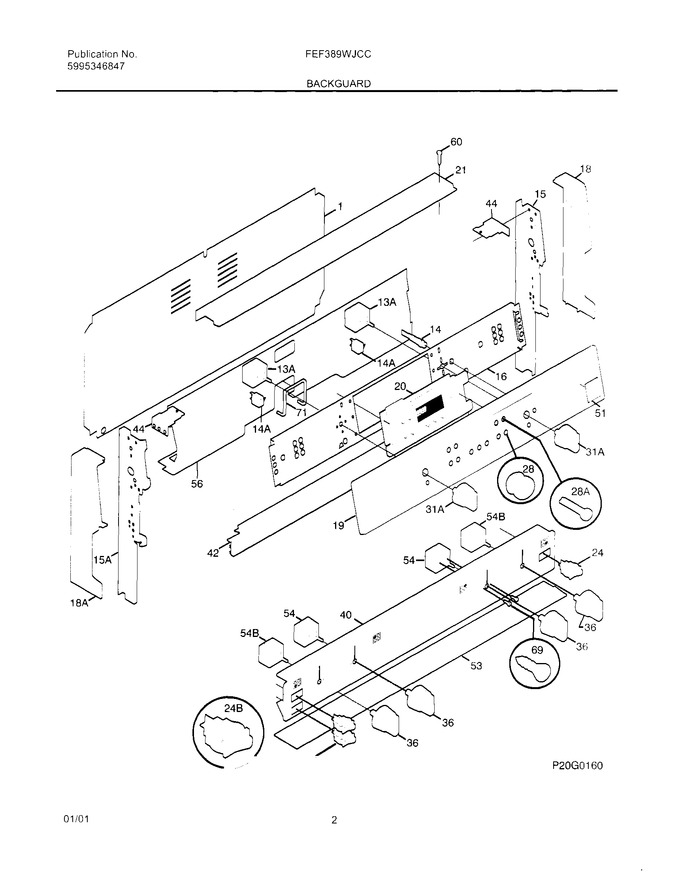

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081600		Shield-backguard, Rear Wall		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite, Drawer/zone   (Replaces: 316095500)			Immediately	$ 84.18
14	3131963		Light-indicator,warmer Dwr/zone				$ 64.31
14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
16	316042612		Plate-instrument Mtg		Appelez-nous	-
18	316021800		End Cap, Black, Rh				$ 81.32
18	316021801		End Cap, Black, Lh				$ 94.29
19	316028385		Panel-control, Assy, Glass, Stainless Steel, Black		Appelez-nous	-
20	316080103		Clock/timer, Eoc				$ 333.53
21	316039201		Trim-canopy/shield		Appelez-nous	-
24	316083100		Switch-rocker, Dual Element, Black, Lh, (2)				$ 89.31
24	316083101		Switch-rocker, Oven Light, Black, Rh				$ 85.01
28	316015102		Push Button, Clock/timer/eoc, Black				$ 50.35
28	316080600		Shaft-push Button, Clock/timer/eoc, Black				$ 49.41
31	316095700		Knob-warmer, Black, (2)		Appelez-nous	-
36	316084900		Knob-control, Black, (4)		Appelez-nous	-
40	316086829		Panel-manifold, Stainless Steel		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
51	316082300		Nameplate, Black		Appelez-nous	-
53	3204623		Shield-heat, Extrusion		Appelez-nous	-
54	316049801		Switch-infinite,24 ,radiant Dual				$ 85.68
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
56	316074909		Deflector-flue		Appelez-nous	-
69	5303292005		Screw,8-32 X 5/32 ,switch/handle		Appelez-nous	-
71	316071901		Gasket-edge, Deflector B/g		Appelez-nous	-
NI	316001758		Wiring Harness,surface Element		Appelez-nous	-
NI	5303272836		Clip - Backguard		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
