SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body

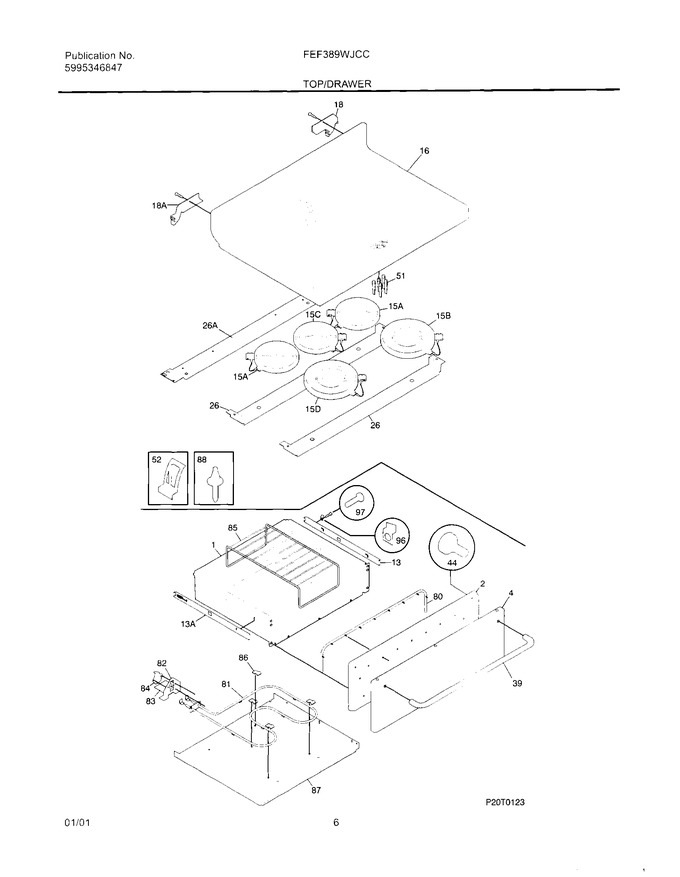

07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316115901		Drawer,warmer		Appelez-nous	-
2	316092902		Liner Panel,4		Appelez-nous	-
4	316079401		Panel-drawer, Stainless		Appelez-nous	-
13	318259507		Glide-warmer,inner Rh   (Replaces: 316105602)			Immediately	$ 69.01
13	318259507		Glide-drawer, Inner, Lh   (Replaces: 316105601)			Immediately	$ 69.01
15	389082702		Element-surface,dual ,9`` ,15 ,2100w/1000w   (Replaces: 316049705)				$ 284.39
15	316049704		Element,15d ,-dual				$ 360.89
15	316098201		Element-warmer,100 W ,120 V		Appelez-nous	-
15	318198817		Element-surface,radiant , Small/6 Inch ,1200 W   (Replaces: 316010205)			Immediately	$ 192.78
16	316098122		Main Top, Glass, Black		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099100		Channel-support,element ,galv Steel ,(2)		Appelez-nous	-
26	316099200		Bracket-support,chassis ,galv Steel		Appelez-nous	-
39	316079500		Handle-door/drawer, Stainless				$ 289.70
51	316105200		Light-indicator, Hot Surface, Assy, (1)		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
80	316109700		Seal-door,warmer Drawer				$ 106.16
81	316093100		Element, Warmer Drawer		Appelez-nous	-
82	316093200		Bracket-mounting, Warmer Element		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093500		Thermo Disc,warmer Drawer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base-warmer				$ 221.55
88	316099500		Pin,guide ,(2)				$ 6.53
96	316122000		Clip-lock, Warmer Drawer				$ 14.12
97	316003802		Screw-hex Hd 3/16``, 6 X 3/8				$ 8.82
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	3131903		Bumper				$ 55.36
NI	316112101		Cleaner,cooktop		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316001917		Harness-warmer Drawer				$ 66.31
NI	316001918		Harness-main, Warmer Drawer		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316045000		Clip-wiring Harness,retainer ,green ,main Top		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
