SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer

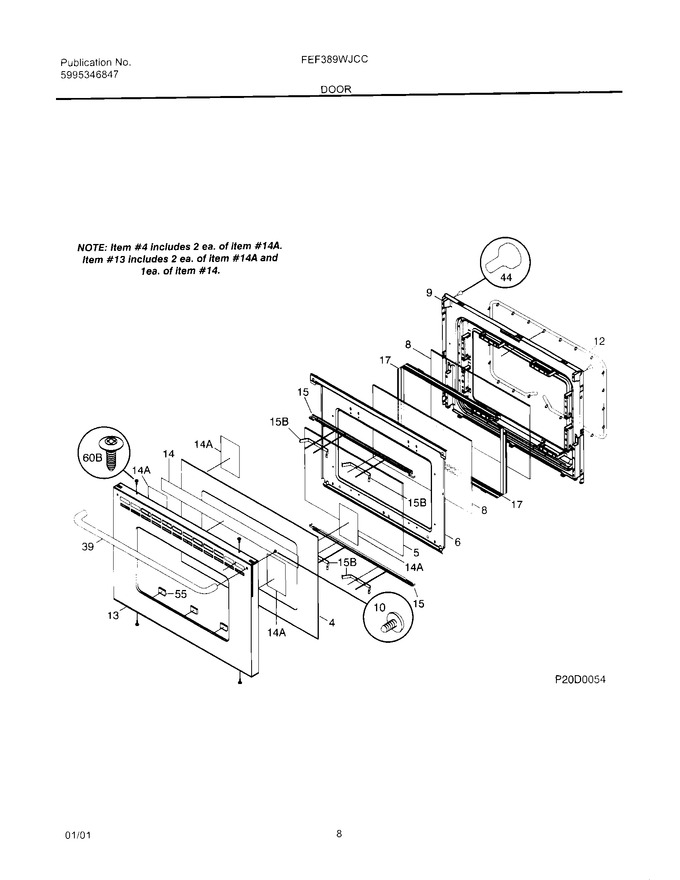

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316117900		Glass-oven Door,black ,outer		Appelez-nous	-
5	316117600		Glass-oven Door, Airwash , Inner				$ 189.05
6	316091404		Shield-wool		Appelez-nous	-
8	5304503232		Glass-oven Door, Inner , (2)   (Replaces: 316117500)				$ 116.95
9	316066619		Liner-oven Door		Appelez-nous	-
10	316001006		Screw-handle Mtg, 10-32		Appelez-nous	-
12	5303131601		Seal-oven Door				$ 374.63
13	316079302		Panel-oven Door,stainless ,outer		Appelez-nous	-
14	316102202		Foil-aluminum, (4)				$ 8.74
14	316102203		Foil-aluminum, (2)		Appelez-nous	-
15	316085501		Bracket,glass Support				$ 41.74
15	316081405		Bracket-glass, (2)		Appelez-nous	-
17	316117701		Spacer-glass,(2)				$ 53.66
39	316079500		Handle-door/drawer, Stainless				$ 289.70
60	316021109		Screw,8-18 X 0.500 ,chrome			Immediately	$ 27.50
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.500 ,burner Box			Immediately	$ 13.46
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
NI	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
NI	316065306		Plate Warning/caution		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
