SELECT A DIAGRAM

01 - Cover

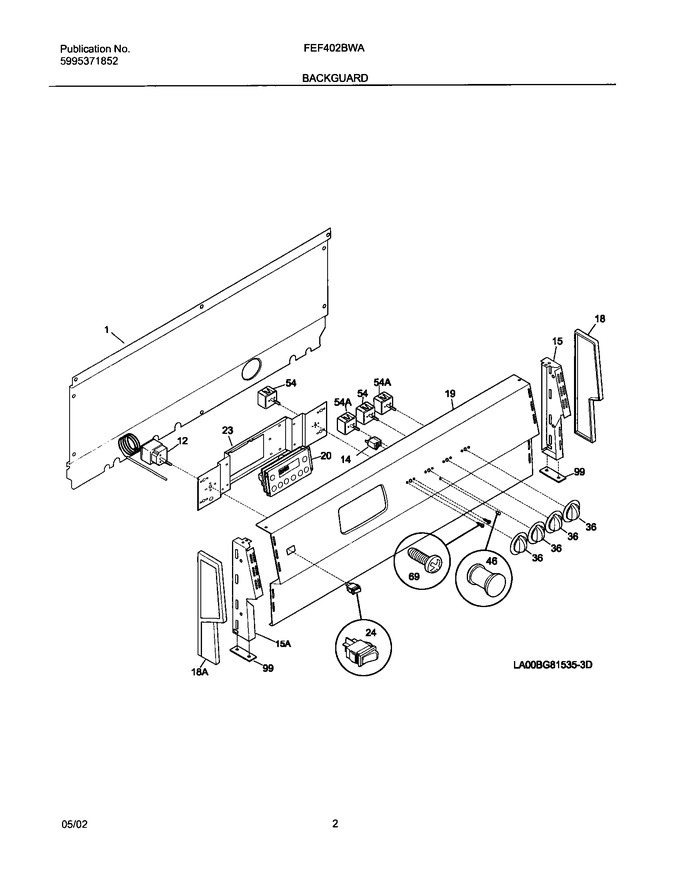

03 - Backguard


05 - Body


07 - Top/drawer/small Door


09 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318086900		Shield,backguard		Appelez-nous	-
14	5303323991		Lamp,indicator				$ 26.25
15	318161900		Bracket,end Cap ,rh		Appelez-nous	-
18	318190602		End Cap,white ,rh		Appelez-nous	-
19	318194100		Panel,control ,white		Appelez-nous	-
23	318015044		Bracket,clock/timer Mtg		Appelez-nous	-
36	318196633		Knob,control ,white				$ 62.95
46	5308006417		Lens,indicator Lamp ,red ,(2)				$ 19.06
69	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
15A	318161901		Bracket,end Cap ,lh		Appelez-nous	-
18A	318190603		End Cap,white ,lh		Appelez-nous	-
F20	318185300		Clock/timer,eoc ,white		Appelez-nous	-
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F54	318293820		Switch,surface Unit ,small   (Replaces: 318220006)				$ 83.62
F54A	318293827		Switch,surface Unit ,large   (Replaces: 318220007)			Immediately	$ 90.82
NI	318082978		Wiring Harness		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
