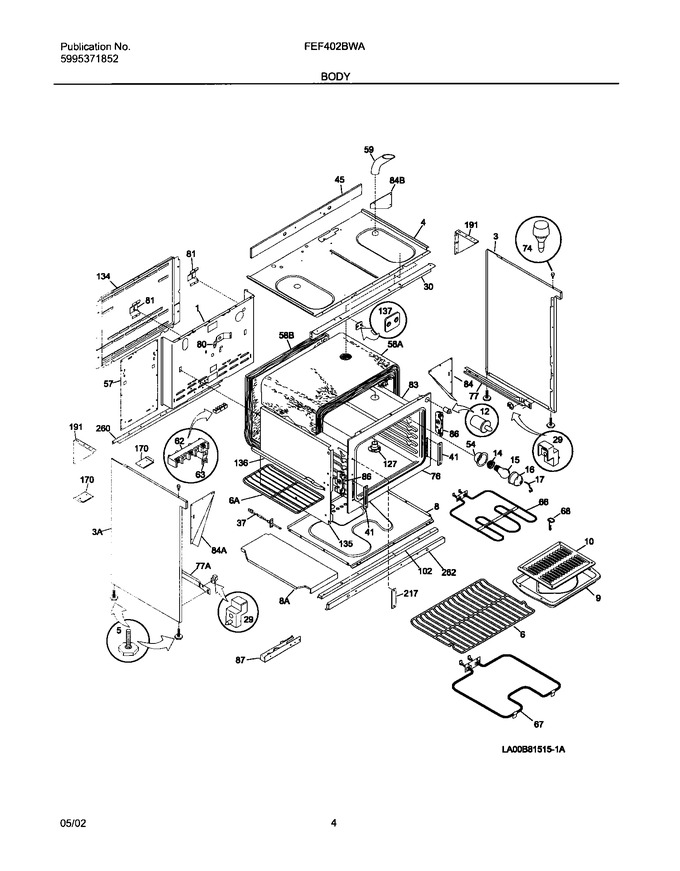

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066402 | Panel,main Back |
|
- | |||||
| 3 | 5308012527 | Panel-bodyside, White, Rh |
|
- | |||||
| 4 | 318073705 | Burner Box |
|
- | |||||
| 5 | 318175510 | Screw-leveling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 318025314 | Rack,oven (Replaces: 318025303) |
|
Immediately | $ 148.70 | ||||
| 8 | 5303326189 | Panel-oven Bottom |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch,oven Light ,door Frame (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 15 | 40A15 | Bulb/lamp,oven Light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Cover,oven Light ,glass (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 29 | 318161600 | Guide,oven Drawer ,nylon ,front |
|
- | |||||
| 30 | 318023917 | Bracket,main Top |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 45 | 318057401 | Panel,wiring Shield |
|
- | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 57 | 318055701 | Panel,small Oven Back |
|
- | |||||
| 59 | 318072527 | Tube,vent ,oven |
|
- | |||||
| 63 | 5303310517 | Plate,ground Strap |
|
- | |||||
| 66 | 318255605 | Element,broil ,2750 W (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 68 | 5304403015 | Support,element Hanger |
|
$ 35.04 | |||||
| 74 | 318147420 | Bumper,base |
|
- | |||||
| 76 | 318056004 | Frame,oven ,front |
|
- | |||||
| 77 | 318018000 | Rail,drawer Glide ,rh |
|
- | |||||
| 80 | 5303324473 | Bracket,oven Mounting |
|
- | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 83 | 318089613 | Liner,oven |
|
$ 205.64 | |||||
| 84 | 5303326184 | Gusset,rh Rear |
|
- | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 87 | 318111800 | Plate,cord Set Mtg |
|
- | |||||
| 102 | 318111901 | Channel,oven Support ,black |
|
- | |||||
| 127 | 318317100 | Adapter,vent Tube ,with Converter (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 134 | 5303310515 | Panel,wiring Cover ,rear |
|
$ 368.97 | |||||
| 135 | 318072401 | Partition-center |
|
- | |||||
| 136 | 5301315199 | Glide-storage Rack |
|
- | |||||
| 137 | 318090310 | Latch-door (Replaces: 318090300) |
|
Immediately | $ 44.61 | ||||
| 170 | 5304405241 | Anti-tip Bracket |
|
$ 59.17 | |||||
| 191 | 5303304030 | Bracket,angle ,corner |
|
- | |||||
| 217 | 318112102 | Plate,warning |
|
- | |||||
| 260 | 318055500 | Bracket,gusset Support |
|
- | |||||
| 262 | 08011954 | Channel,oven Support ,front |
|
$ 47.60 | |||||
| 3A | 318066004 | Panel-bodyside, White, Lh (Replaces: 318066003) |
|
- | |||||
| 58A | 318133700 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318133747 | Insulation,oven Back |
|
- | |||||
| 6A | 08011960 | Rack-oven, Small |
|
- | |||||
| 77A | 318018001 | Rail,drawer Glide ,lh |
|
- | |||||
| 84A | 5303326185 | Gusset,lh Rear |
|
- | |||||
| 84B | 318055901 | Gusset-rear |
|
- | |||||
| 8A | 318179107 | Panel,heat Shield ,sm Oven Bottom |
|
- | |||||
| F14 | 316116400 | Receptacle, Oven Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| F37 | 316217002 | Probe,oven Temp (Replaces: 318198500) |
|
Immediately | $ 61.23 | ||||
| F62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| F67 | 318255006 | Element,bake ,3000 W (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| NI | 5303307980 | Screw,8-32 X 0.437 |
|
Immediately | $ 14.18 | ||||
| NI | 5303051099 | Nut, Hex, 10-32 |
|
- | |||||
| NI | 5305151612 | Nut,10-24 |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 |
