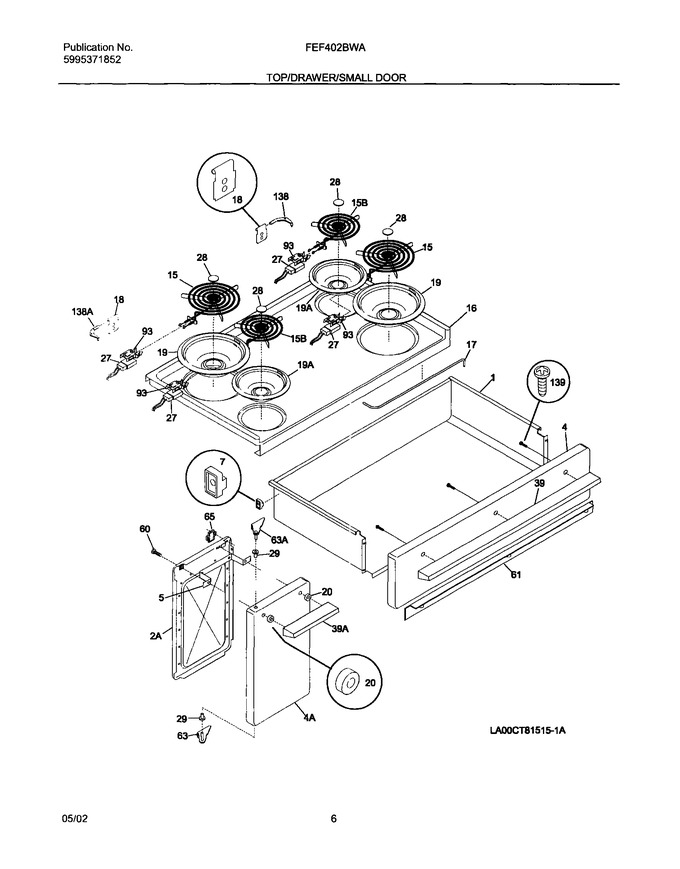

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer-utility		Appelez-nous	-
4	08011980		Panel,drawer ,white ,front		Appelez-nous	-
5	318014500		Spacer,door Handle		Appelez-nous	-
7	5303326236		Guide,drawer		Appelez-nous	-
16	08011961		Panel,main Top ,white		Appelez-nous	-
17	3051554		Rod,support ,main Top Panel		Appelez-nous	-
18	318186400		Retainer,hinge Pin		Appelez-nous	-
20	5303310504		Spacer,handle ,oven Door ,(2)		Appelez-nous	-
28	5303309002		Medallion,surface Element ,center Trim		Appelez-nous	-
29	318141800		Spacer,hinge Pin ,upper/lower				$ 14.49
39	318185901		Handle,drawer ,black		Appelez-nous	-
60	5303323139		Screw,10-24 X 0.906				$ 13.46
61	318107700		Toeplate		Appelez-nous	-
63	318024508		Hinge,door ,lwr Small Oven ,lower				$ 133.72
65	318090220		Strike-door				$ 57.04
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
138	5301315631		Pin,hinge ,rs Cooktop		Appelez-nous	-
139	5303311135		Screw-handle,8-32 X 3/4 ,(2)		Appelez-nous	-
2A	318048213		Liner,inner Door ,small Oven		Appelez-nous	-
39A	318185903		Handle,small Oven Door ,black		Appelez-nous	-
4A	318009308		Panel-oven Door, White, Small		Appelez-nous	-
63A	318024509		Hinge,door ,upr Small Oven				$ 118.28
F138	3051658		Pin,hinge ,ls Cooktop		Appelez-nous	-
F15	316442301		Element,surface ,large/8 Inch ,2600 W ,240 V   (Replaces: 5303309001)			Immediately	$ 44.39
F15B	PS12-4BK		Element,surface ,small/6 Inch ,1500 W   (Replaces: 5303309000)			Immediately	$ 35.96
F19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
F19A	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
F27	RR500		Terminal Block, Surface Element   (Replaces: 5303323704)			Immediately	$ 9.42
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303317975		Screw,10 X 1/2		Appelez-nous	-
NI	318086002		Washer,flat ,steel		Appelez-nous	-
NI	3051070		Screw,hex Washer Head ,10-24 X 0.438 ,special		Appelez-nous	-
