SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Gas Controls


05 - Internal Controls


06 - Wiring Information

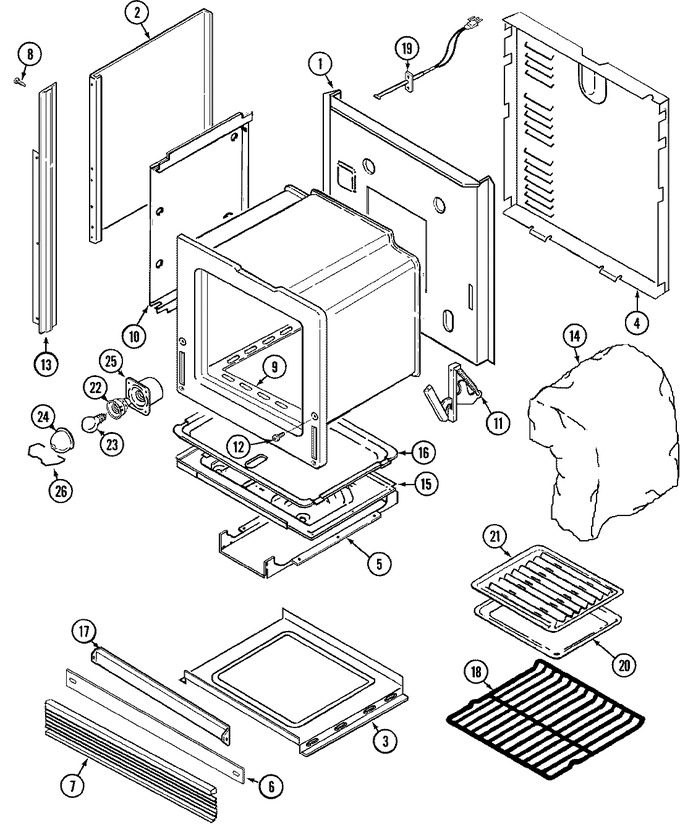

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74004108		Back, Main	10	Appelez-nous	-
1	8008P021-60		Grommet, Snap	10	Appelez-nous	-
2	2618F083-51		Panel, Body	10	Appelez-nous	-
3	74001742		Bottom, Main	10	Appelez-nous	-
4	4005F405-51		Cover, Back	10	Appelez-nous	-
5	3807F429-51		Support, Cavity	10	Appelez-nous	-
6	4005F354-71		Strip, Bottom (wht)	10	Appelez-nous	-
7	74004130		Extrusion, Vent (lwr-chr)	10	Appelez-nous	-
8	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	10		Immediately	$ 12.62
9	5504A003-19		Bottom, Oven	10	Appelez-nous	-
9	74002377		Clip, Oven Bottom	10	Appelez-nous	-
10	74001436		Retainer, Insulation (side)	10	Appelez-nous	-
11	WP74011141		Hinge, Door   (Replaces: 74003968)	10		Immediately	$ 128.06
12	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
13	74004136		Extrusion, Side (lt-chr)	10	Appelez-nous	-
13	74004135		Extrusion, Side (rt-chr)	10	Appelez-nous	-
14	74003382		Insulation, Back/bottom	10	Appelez-nous	-
14	74003503		Insulation, Oven	10	Appelez-nous	-
14	74003036		Insulation, Oven Wrap	10	Appelez-nous	-
15	74003242		Retainer, Bottom Insulation	10	Appelez-nous	-
16	74001651		Pan, Bake Burner	10	Appelez-nous	-
17	74001219		Baffle, Oven Front	10	Appelez-nous	-
18	WPW10282492		Rack, Oven   (Replaces: 74001757)	10		Immediately	$ 65.15
19	12001655		Probe, Oven Sensor (short)   (Replaces: 74003413)	10		Immediately	$ 41.01
20	Y3401F02019		Pan, Broil	10	Appelez-nous	-
21	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
22	74003387		Receptacle, Bulb	10			$ 5.84
23	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
24	74003389		Cover, Bulb	10	Appelez-nous	-
25	74003388		Housing, Bulb	10	Appelez-nous	-
26	74003391		Retainer, Bulb Cover	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
