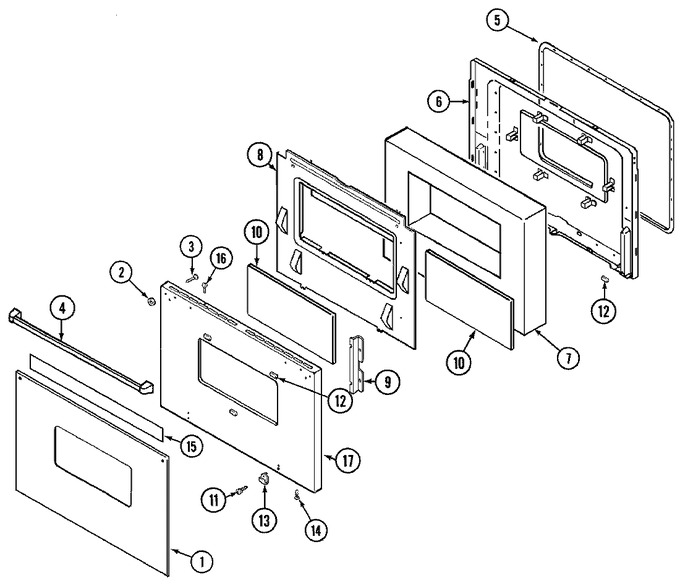

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74004104		Glass, Oven Door (wht)	10	Appelez-nous	-
2	74003986		Spacer, Door Glass (blk)	10			$ 13.08
3	7101P326-60		Screw	10	Appelez-nous	-
4	74003991		Handle, Oven Door (wht)	10	Appelez-nous	-
5	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
6	74003244		Lining, Door	10	Appelez-nous	-
7	74001842		Insulation, Door	10	Appelez-nous	-
8	74001843		Baffle, Door	10	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
9	74001844		Retainer, Glass	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74001841		Glass, Inner	10	Appelez-nous	-
11	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
12	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
13	7112P094-60		Clip, Glass (wht)	10			$ 7.19
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
16	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
17	71002809		Panel, Door (wht)	10	Appelez-nous	-
