01 - Body
02 - Control Panel
03 - Door
04 - Gas Controls
05 - Internal Controls
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

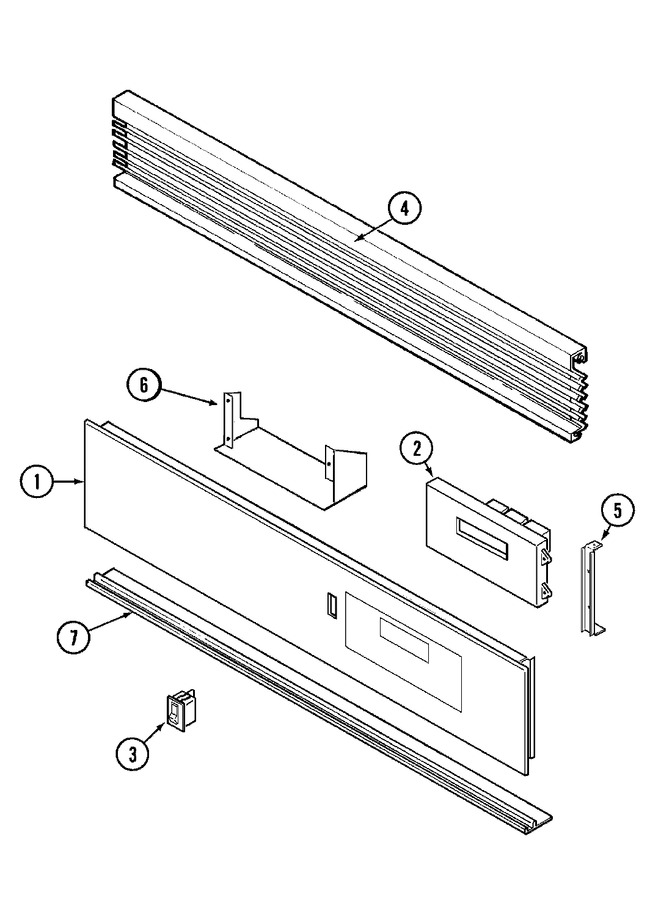

| 1 | 71003302 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | 74003880 | Clock (wht) | 10 |
|
- | ||||
| 2 | 71003311 | Overlay, Clock (wht) | 10 |
|
- | ||||
| 2 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 3 | 7403P200-60 | Switch, Rocker (wht) | 10 |
|
- | ||||
| 4 | 74004124 | Extrusion, Vent Grill (chr) | 10 |
|
- | ||||
| 5 | 74002932 | Support, Clock | 10 |
|
- | ||||
| 6 | 7003P056-60 | Insulation, Fiberboard | 10 |
|
- | ||||
| 7 | 7756P078-60 | Extrusion, Lower (wht) | 10 |
|
- | ||||
| NI | 74004125 | Harness, Main | 10 |
|
- | ||||
| NI | 74004126 | Harness, Sensor/harness | 10 |
|
- | ||||
| NI | 74002579 | Manual, Insert Clock (frch) | 10 |
|
- | ||||
| NI | 74004140 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 74004141 | Manual, Use & Care (fch) | 10 |
|
- | ||||
| NI | 74004142 | Insert, Clock (fch) | 10 |
|
- | ||||
| NI | 74002704 | Manual, Insert Clock (frch) | 10 |
|
- | ||||
| NI | 16009722 | Manual, Service-no Refund | 10 |
|
- | ||||
| NI | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
