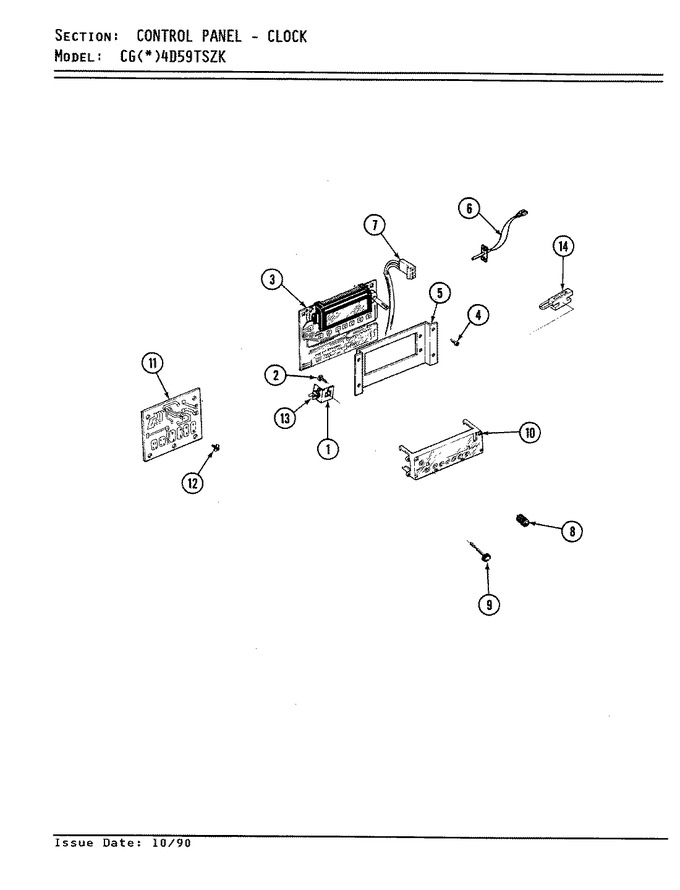

01 - Body
02 - Burner Box
03 - Control Panel
04 - Control Panel (clock)
05 - Door/drawer
06 - Gas Controls
07 - Oven
08 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7401P015-60 | Block, Terminal | 1 |
|
- | ||||
| 1 | 3801F213-45 | Bracket | 1 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 3 | 7601P181-60 | Clock, Electronic | 23 |
|
- | ||||
| 3 | 7601P155-60 | Clock | 12 |
|
- | ||||
| 3 | 7601P101-60 | Clock | 1 |
|
- | ||||
| 3 | 7601P163-60 | Clock | 17 |
|
- | ||||
| 4 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 5 | 3801F118-45 | Bracket, Clock Mtg | 1 |
|
- | ||||
| 6 | 12001655 | Oven Sensor (Replaces: 7430P007-60) | 1 |
|
Immediately | $ 41.01 | |||
| 6 | 7417P002-60 | Connector, Pin | 1 |
|
- | ||||
| 7 | 5170P087-60 | Harness, Oven Sensor | 10 |
|
- | ||||
| 7 | 5170A007-60 | Harness, Sensor | 1 |
|
- | ||||
| 7 | 5170P100-60 | Harness, Oven Sensor | 17 |
|
- | ||||
| 8 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 8 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 17 |
|
$ 12.13 | ||||
| 9 | 7711P452-60 | Button, Clock Set | 17 |
|
- | ||||
| 9 | 7711P171-60 | Knob, Clock (button-blk) | 1 |
|
$ 19.90 | ||||
| 10 | 7730P005-60 | Lens, Clock | 1 |
|
- | ||||
| 11 | 5170A067-60 | Wire Harness, Clock | 1 |
|
- | ||||
| 11 | 7428P006-60 | Relay, Board Assy. | 1 |
|
- | ||||
| 12 | 8004P020-60 | Support, Relay Board | 1 |
|
- | ||||
| 13 | 7403P087-60 | Switch, H.l. Fan | 13 |
|
- | ||||
| 13 | 7403P188-60 | Switch | 1 |
|
- | ||||
| 14 | 8007P003-60 | Bushing, Snap | 1 |
|
- |
