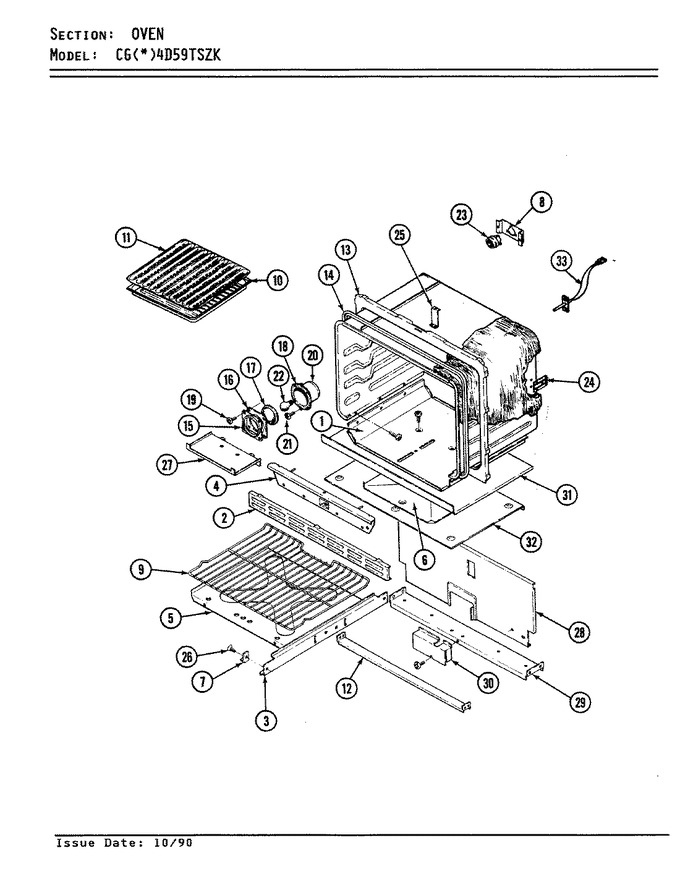

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4001F060-45		Housing, Bake Burner	1	Appelez-nous	-
2	2614F008-80		Panel, Lower Front	1	Appelez-nous	-
2	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
3	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
3	3406F027-51		Runner, Outer	1	Appelez-nous	-
4	3601W125-19		Baffle Oven Front	25	Appelez-nous	-
4	3601W125-15		Baffle, Ovn Front	1	Appelez-nous	-
4	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
5	2205F020-15		Bottom, Oven	22	Appelez-nous	-
5	2205F020-21		Bottom, Oven	25	Appelez-nous	-
5	W10124403		Bottom, Oven	1	Appelez-nous	-
6	3601F116-45		Baffle	1	Appelez-nous	-
7	8016P005-60		Glide, Front	1	Appelez-nous	-
8	3801F024-51		Bracket	1	Appelez-nous	-
9	7801P031-60		Rack, Oven	1	Appelez-nous	-
10	4396923		Pan, Broil   (Replaces: 3401F004-23)	1		Immediately	$ 52.04
11	3413F002-23		Insert, Broil Pan	1	Appelez-nous	-
12	7101P045-60		Screw	1	Appelez-nous	-
12	3802F076-51		Brace, Inner Side	1	Appelez-nous	-
13	W10124350		Not Required Part Or See Note Front,oven (not Replaceable)	-	Appelez-nous	-
14	7201P026-60		Gasket, Flue Box	1	Appelez-nous	-
15	3804F012-45		Retainer, Lamp Guard	1	Appelez-nous	-
16	7201P015-60		Gasket, Lamp Retainer	1	Appelez-nous	-
17	7902P057-60		Glass, Lamp Guard	1	Appelez-nous	-
18	7201P014-60		Gasket, Housing	1	Appelez-nous	-
19	WP7101P126-60		Screw   (Replaces: 7101P064-60)	1		Immediately	$ 6.85
20	4001F020-23		Housing, Lamp	1	Appelez-nous	-
21	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
22	40A15		Bulb, Oven   (Replaces: 7407P026-60)	1		Immediately	$ 1.98
23	7408P002-60		Receptacle, Lamp	1	Appelez-nous	-
24	3807F205-45		Support, Oven Rear	1	Appelez-nous	-
25	3801F093-45		Bracket, Burner Box	1	Appelez-nous	-
26	7101P013-60		Screw, Special	1	Appelez-nous	-
27	WP7101P126-60		Screw   (Replaces: 7101P273-60)	1		Immediately	$ 6.85
27	3601W130-45		Baffle, Bake & Broil	1	Appelez-nous	-
28	4002F145-45		Back, Broil Section	1	Appelez-nous	-
29	3807F329-45		Support, Valve	1	Appelez-nous	-
30	4005F258-51		Cover, Oven Valve	1	Appelez-nous	-
31	3807F388-45		Support, Oven Bottom	1	Appelez-nous	-
32	3604F162-45		Shield, Service Drawer	1	Appelez-nous	-
33	12001655		Probe, Oven Sensor   (Replaces: 7430P009-60)	39		Immediately	$ 41.01
33	12001655		Oven Sensor Kit (34)   (Replaces: W10127322)	1		Immediately	$ 41.01
