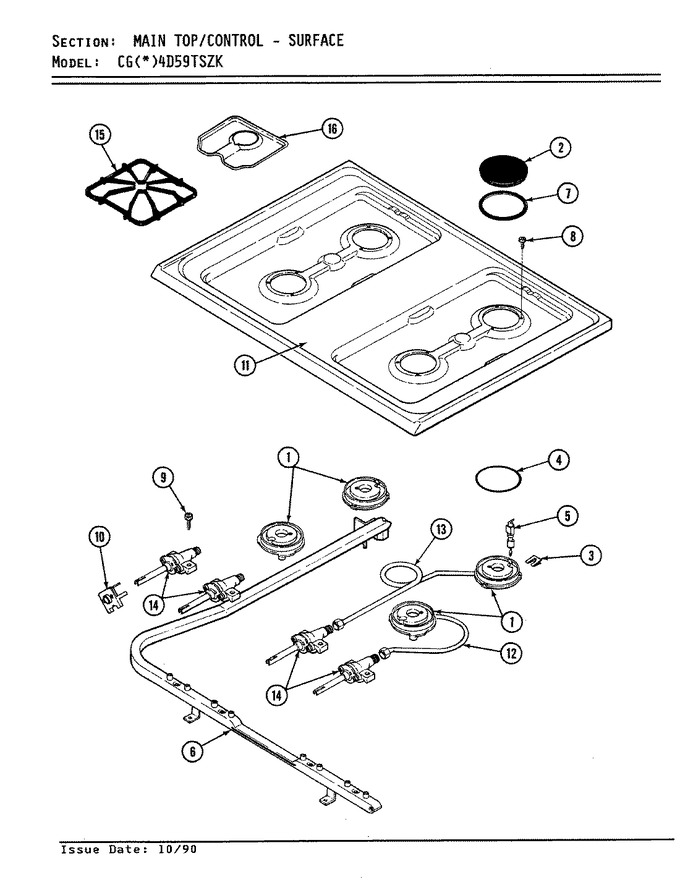

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Burner Box
03 - Control Panel
04 - Control Panel (clock)
05 - Door/drawer
06 - Gas Controls
07 - Oven
08 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5110A825-60 | Wire, Igniter Rear | 1 |
|
- | ||||
| 1 | 5415A016-60 | Lp Conversion Kit | 1 |
|
- | ||||
| 1 | 5415A015-60 | + Nat. Gas Conversion Kit | 1 |
|
- | ||||
| 1 | 7505A155-60 | Burner, Top Complete | 1 |
|
- | ||||
| 1 | 7505P187-60 | Burner, Top | 14 |
|
- | ||||
| 1 | 5110A824-60 | Wire, Igniter Front | 1 |
|
- | ||||
| 1 | 7509P034-60 | Orifice, Sealed Burner-nat | 1 |
|
- | ||||
| 2 | 7504P007-60 | Cap, Surface Burner, Black | 1 |
|
- | ||||
| 3 | 7112P072-60 | Clip | 1 |
|
- | ||||
| 4 | 7201P037-60 | Gasket, Burner | 1 |
|
- | ||||
| 5 | 7432P053-60 | Igniter, Burner | 1 |
|
- | ||||
| 6 | 7513P093-60 | Manifold Pipe | 1 |
|
- | ||||
| 6 | 7513P104-60 | Pipe, Manifold | 18 |
|
- | ||||
| 7 | 2014F001-00 | Ring, Black | 1 |
|
- | ||||
| 8 | 7101P256-60 | Screw | 1 |
|
- | ||||
| 9 | 7101P296-60 | Screw | 18 |
|
- | ||||
| 9 | 7101P043-60 | Screw, Control Valve | 1 |
|
- | ||||
| 10 | 7403P258-60 | Switch | 25 |
|
- | ||||
| 10 | 7403P259-60 | Switch | 28 |
|
- | ||||
| 10 | WP7403P190-60 | Switch, Burner (Replaces: 7403P190-60) | 1 |
|
$ 118.82 | ||||
| 10 | 7403P216-60 | Switch, Top Burner | 18 |
|
- | ||||
| 10 | WP7403P287-60 | Switch, Igniter (Replaces: 7403P287-60) | 34 |
|
$ 130.75 | ||||
| 12 | 7506P076-60 | Tube, Front Burner | 1 |
|
- | ||||
| 13 | 7506P077-60 | Tube, Rear Burner | 1 |
|
- | ||||
| 14 | 7502P100-60 | Valve, Top Burner | 1 |
|
- | ||||
| 14 | 7214P003-60 | Sleeve | 1 |
|
- | ||||
| 14 | 7502P220-60 | Valve, Top Burner | 34 |
|
- | ||||
| 14 | 7502P141-60 | Valve, Top Burner | 18 |
|
- | ||||
| 15 | 7518P014-60 | Grate, Black | 1 |
|
- | ||||
| 16 | 1430283 | Drip Tray Kit | 1 |
|
$ 95.86 |
