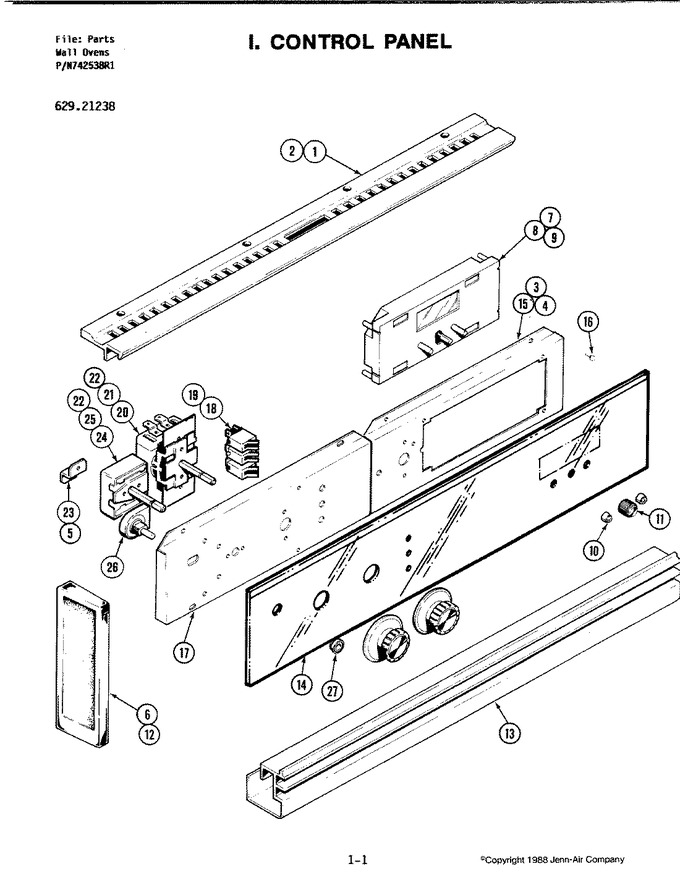

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704256		Extrusion, Top	10	Appelez-nous	-
2	712066		Screw	10	Appelez-nous	-
3	702286		Plug, Hole	10	Appelez-nous	-
4	Y700630		Lens, Indicator Lights	10			$ 4.18
5	WP12990527		Screw   (Replaces: Y708955)	10		Immediately	$ 7.15
6	704257		End Cap (lt-blk)	10	Appelez-nous	-
7	703676		Bracket, Timer	10	Appelez-nous	-
8	Y703708		Clock	10	Appelez-nous	-
9	703679		Palnut	10	Appelez-nous	-
10	WP7711P492-60		Knob, Clock (sm/blk)   (Replaces: Y704239)	10			$ 12.13
11	WP7711P492-60		Knob, Clock (blk)   (Replaces: Y703910)	10			$ 12.13
12	704258		End Cap (rt-blk)	10	Appelez-nous	-
13	704255		Extrusion, Bottom (blk)	10	Appelez-nous	-
14	704860		Glass, Control Panel	10	Appelez-nous	-
15	705336		Panel, Control (rt)	10	Appelez-nous	-
16	705331		Pad, Spacer	10	Appelez-nous	-
17	705337		Panel, Control (lt)	10	Appelez-nous	-
18	Y702394		Light, Indicator 240v	10	Appelez-nous	-
19	Y702393		Light, Indicator-120v	10	Appelez-nous	-
20	703080		Thermostat-upper	10	Appelez-nous	-
21	Y704840		Knob, Thermostat	10			$ 21.24
22	71002058		Screw   (Replaces: Y702124)	10			$ 5.82
23	701609		Angle, Attachment	10	Appelez-nous	-
24	703078		Switch, Selector (upper)	10	Appelez-nous	-
25	WPY704841		Knob, Selector Switch   (Replaces: Y704841)	10			$ 40.37
26	DE81-08481A		Switch, Push   (Replaces: 701621)	10			$ 606.80
27	703089		Wire, Tan	10	Appelez-nous	-
27	702746		Tie, Mount Cable	10	Appelez-nous	-
27	703738		Harness, Wire	10	Appelez-nous	-
27	DE81-04412A		Wire, Pink   (Replaces: 703090)	10			$ 327.97
27	DE81-09159A		Wire, Wire   (Replaces: 703370)	10			$ 313.88
27	704903		Harness, Wire	10	Appelez-nous	-
27	704323		Bezel, Switch	10	Appelez-nous	-
