01 - Body
02 - Control Panel
03 - Cooling Fan
04 - Door

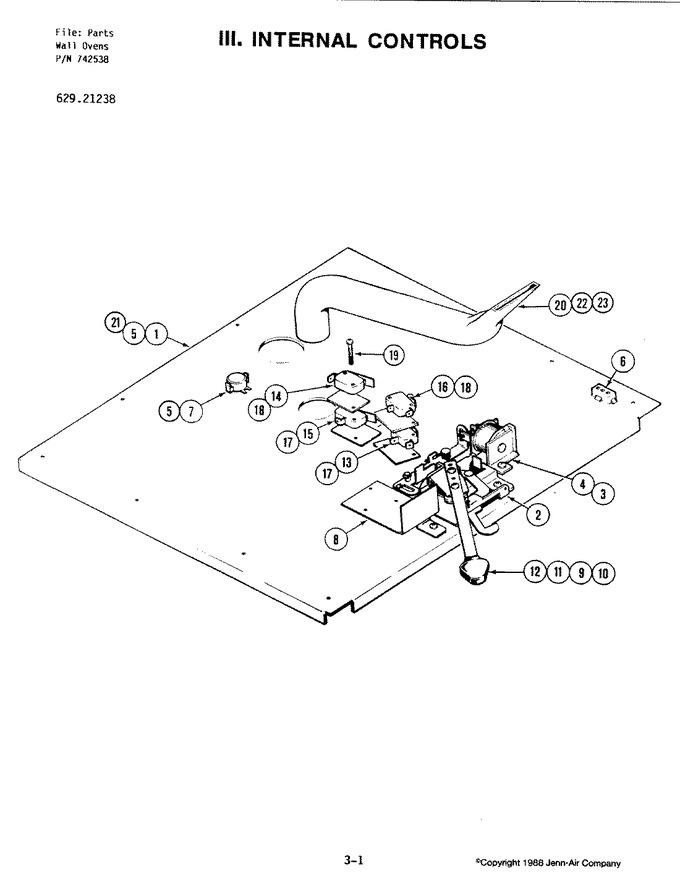

05 - Internal Controls
06 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704155 | Panel-top | 10 |
|
- | ||||
| 2 | Y703357 | Latch Assy. | 10 |
|
- | ||||
| 3 | Y701686 | Pin, Cotter | 10 |
|
- | ||||
| 4 | Y702526 | Solenoid | 10 |
|
- | ||||
| 4 | 703767 | Wire, Gray | 10 |
|
- | ||||
| 5 | WP12990527 | Screw (Replaces: Y708955) | 10 |
|
Immediately | $ 7.15 | |||
| 6 | 703517 | Connector, Harness | 10 |
|
- | ||||
| 7 | 701687 | Thermostat | 10 |
|
- | ||||
| 8 | 701706 | Shield, Switch | 10 |
|
- | ||||
| 9 | Y701690 | Lever, Latch | 10 |
|
- | ||||
| 10 | 707407 | Screw | 10 |
|
$ 6.42 | ||||
| 11 | 701671 | Spring, Knob | 10 |
|
- | ||||
| 12 | 701670 | Knob, Lever | 10 |
|
- | ||||
| 13 | Y702360 | Switch, Solenoid | 10 |
|
- | ||||
| 14 | 702806 | Switch, Door | 10 |
|
- | ||||
| 15 | 702805 | Switch, Door | 10 |
|
- | ||||
| 16 | Y703732 | Switch, Latch | 10 |
|
- | ||||
| 17 | Y702350 | Insulator | 10 |
|
- | ||||
| 18 | 703264 | Insulator | 10 |
|
- | ||||
| 19 | 702807 | Screw | 10 |
|
- | ||||
| 20 | 704680 | Tube, Vent | 10 |
|
- | ||||
| 21 | WP71001171 | Screw, Ground (Replaces: Y703817) | 10 |
|
$ 6.26 | ||||
| 22 | 701681 | Top (outer) | 10 |
|
- | ||||
| 23 | WP90767 | Screw (Replaces: 715773) | 10 |
|
Immediately | $ 7.04 |
