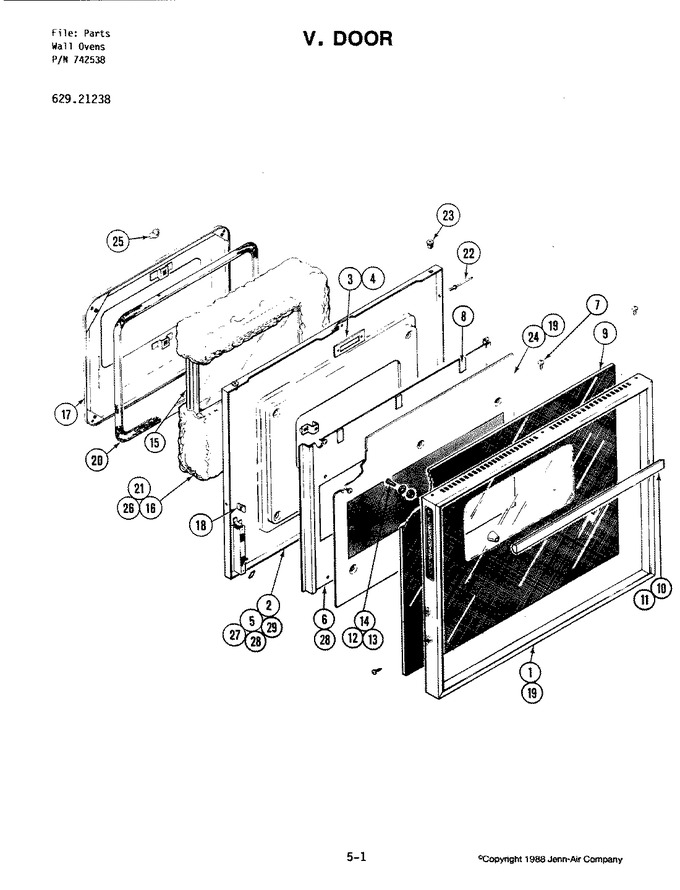

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704318		Frame	10	Appelez-nous	-
2	712188		Liner, Door	10	Appelez-nous	-
3	Y712010		Plate, Latch (upper)	10	Appelez-nous	-
4	WP210720		Rivet   (Replaces: 701662)	10			$ 12.14
5	701652		Bracket, Stand-off	10	Appelez-nous	-
6	712250		Baffle	10	Appelez-nous	-
7	WPY706189		Screw (blk)   (Replaces: Y704238)	10		Immediately	$ 6.47
8	Y704223		Bumper, Button	10	Appelez-nous	-
9	Y703706		Glass, Outer	10	Appelez-nous	-
10	704859		Handle, Door----na	10	Appelez-nous	-
11	701832		Post, Mounting	10	Appelez-nous	-
12	715939		Bushing	10	Appelez-nous	-
13	Y700446		Washer	10			$ 5.27
14	Y703533		Screw	10	Appelez-nous	-
15	701648		Window Pack	10	Appelez-nous	-
16	701658		Insulation, Bottom	10	Appelez-nous	-
17	Y701649		Plug, Oven	10	Appelez-nous	-
18	Y700503		Clip, Retainer	10	Appelez-nous	-
19	W11233072		Screw (blk)   (Replaces: Y704237)	10		Immediately	$ 12.62
20	WP701650		Seal, Oven Door   (Replaces: 701650)	10			$ 184.62
21	DE81-08905A		Insulation, Side   (Replaces: 701659)	10			$ 160.26
22	DE81-07129A		Rivet, Accordion   (Replaces: 701641)	10			$ 128.48
23	702657		Nut, Push-in	10	Appelez-nous	-
24	DE81-09358A		Panel, Perforated (upr)   (Replaces: 703784)	10			$ 54.82
25	Y700834		Clip	10	Appelez-nous	-
26	701660		Insulation, Top	10	Appelez-nous	-
27	703958		Screw	10	Appelez-nous	-
28	715870		Screw	10	Appelez-nous	-
29	Y703449		Washer	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
