SELECT A DIAGRAM

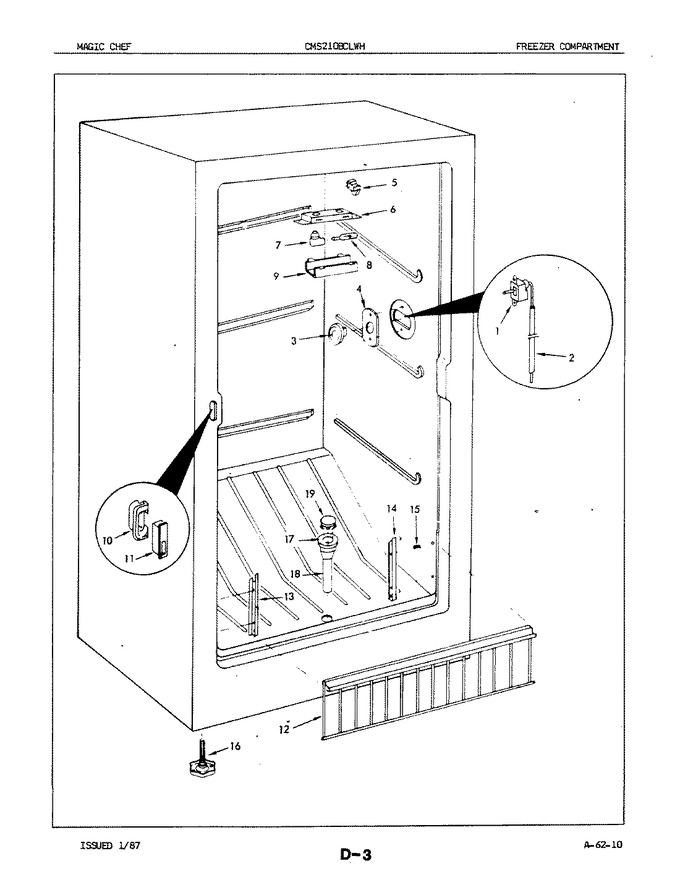

01 - Freezer Compartment


02 - Freezer Door


03 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10068250		Screw   (Replaces: Y04702903)				$ 3.66
1	Y04667503		Temp Control		Appelez-nous	-
2	4008-1		Plastic Tubing		Appelez-nous	-
3	Y00530815		Control Knob		Appelez-nous	-
4	67006425		Screw   (Replaces: Y04637302)			Immediately	$ 6.26
4	046673-01		Plate Control		Appelez-nous	-
5	W11384469		Light Switch   (Replaces: Y04678901)			Immediately	$ 33.51
6	045855-01		Clip		Appelez-nous	-
6	Y04855101		Bracket, Light Mount		Appelez-nous	-
6	046841-01		U Nut		Appelez-nous	-
6	67006425		Screw   (Replaces: Y04637302)			Immediately	$ 6.26
7	Y04553701		Receptacle, Bulb		Appelez-nous	-
8	045606-02		Lamp		Appelez-nous	-
9	Y04855201		Shield, Light		Appelez-nous	-
10	042951-02		Retainer		Appelez-nous	-
11	046028-01		Drain Plug		Appelez-nous	-
11	042952-02		Strike		Appelez-nous	-
11	046375-02		Screw		Appelez-nous	-
12	048408-03		Gate		Appelez-nous	-
13	047126-01		Bracket		Appelez-nous	-
14	Y04712602		Rh Gate Bracket		Appelez-nous	-
15	047587-01		Nylon Nut		Appelez-nous	-
15	WP3387230		Screw   (Replaces: Y04637414)			Immediately	$ 7.69
16	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
17	045570-01		Drain Grommet		Appelez-nous	-
18	045879-01		Sleeve		Appelez-nous	-
19	046412-01		Drain Plug		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
