SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door

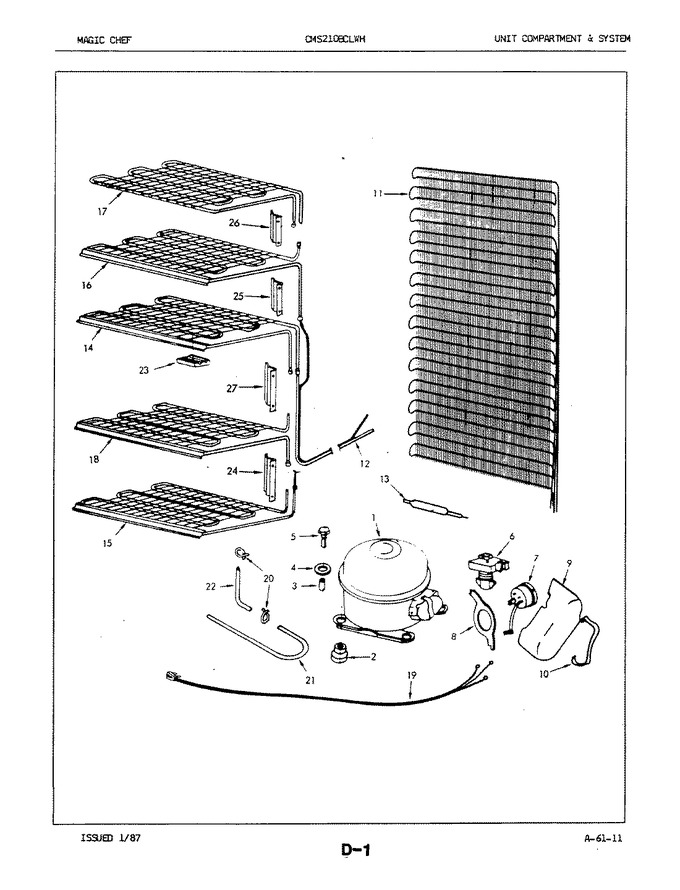

03 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA990		Compressor		Appelez-nous	-
2	004691-02		Grommet		Appelez-nous	-
3	004694-01		Sleeve		Appelez-nous	-
4	005417-03		Washer		Appelez-nous	-
5	Y04703209		Screw Comp Mtg		Appelez-nous	-
6	9286-106		Relay		Appelez-nous	-
7	53067-72		Overload		Appelez-nous	-
8	65190-1		Clip, Overload		Appelez-nous	-
9	65189-1		Cover, Terminal		Appelez-nous	-
10	65191-1		Clip, Terminal Cover		Appelez-nous	-
11	RA43880-11		Condenser Kit		Appelez-nous	-
12	048465-03		Heat Exchanger		Appelez-nous	-
13	WPW10143759		Drier   (Replaces: 13900)			Immediately	$ 27.70
14	Y04813303		Evap Shelf		Appelez-nous	-
15	048134-02		Evap Shelf		Appelez-nous	-
16	048135-11		Evap Shelf		Appelez-nous	-
17	048136-02		Evap Shelf Top		Appelez-nous	-
18	048135-08		Evap Shelf		Appelez-nous	-
19	043171-01		Clamp		Appelez-nous	-
19	Y00075302		Line Cord		Appelez-nous	-
20	043840-04		Clamp		Appelez-nous	-
21	045573-02		Drain Hose		Appelez-nous	-
22	Y04576601		Drain Tube		Appelez-nous	-
23	Y04913701		Clamp		Appelez-nous	-
24	048086-06		Cover		Appelez-nous	-
25	048087-14		Tube Cover		Appelez-nous	-
26	048087-15		Cover		Appelez-nous	-
27	047014-01		Tunnel Suction Line		Appelez-nous	-
27	047015-01		Ret Tunnel		Appelez-nous	-
27	048087-16		Cover, Evaporator Tubes		Appelez-nous	-
27	048440-01		Grommet Tunnel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
