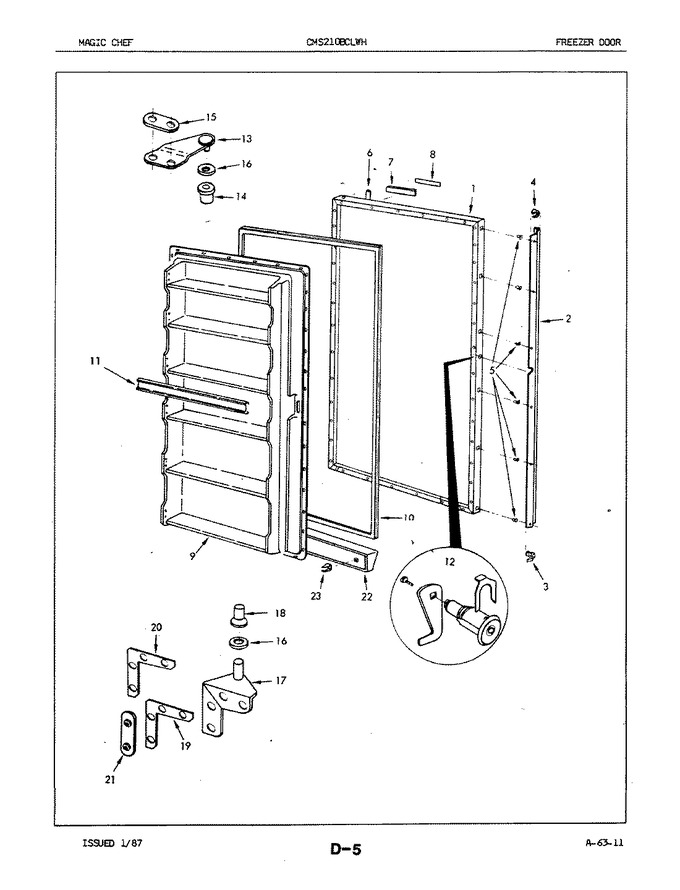

SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	046977-07		Insulation		Appelez-nous	-
1	048403-01		Spring,crossbar		Appelez-nous	-
1	046975-01		Foam Block		Appelez-nous	-
1	3-24898-007		Vent Plug   (Replaces: Y04699801)				$ 9.72
1	048378-06-WW		Outer Panel		Appelez-nous	-
1	048402-03		Cross Bar, Door Support		Appelez-nous	-
2	047142-05		Handle Cms		Appelez-nous	-
2	048305-01		Screw		Appelez-nous	-
3	047143-01		End Cap Handle		Appelez-nous	-
4	047144-01		End Cap Handle		Appelez-nous	-
4	Y04723101		Screw		Appelez-nous	-
5	047536-01		Clip,inner Panl		Appelez-nous	-
6	046913-02		Door Trim		Appelez-nous	-
7	048434-01		Nameplate Bezel		Appelez-nous	-
8	049338-21		Nameplate		Appelez-nous	-
8	047579-01		Nameplate		Appelez-nous	-
8	049338-14		Nameplate		Appelez-nous	-
8	049338-08		Nameplate		Appelez-nous	-
8	049338-10		Nameplate		Appelez-nous	-
8	049338-09		Nameplate		Appelez-nous	-
8	049338-12		Nameplate		Appelez-nous	-
8	049338-01		Nameplate		Appelez-nous	-
8	049338-03		Nameplate		Appelez-nous	-
8	049338-05		Nameplate		Appelez-nous	-
8	048856-01		Nameplate		Appelez-nous	-
8	049338-13		Nameplate		Appelez-nous	-
8	049338-15		Nameplate		Appelez-nous	-
8	049338-16		Nameplate		Appelez-nous	-
9	048330-03		Inner Panel		Appelez-nous	-
9	Y04589901		Screw		Appelez-nous	-
10	045283-01		Door Gasket		Appelez-nous	-
11	046862-05		Trim Door Shelf		Appelez-nous	-
12	048417-04		Washer, Lock		Appelez-nous	-
12	Y04689701		Lock Body		Appelez-nous	-
12	3-35284-001		Lock Bolt   (Replaces: Y04689702)				$ 24.42
12	Y04689703		Clip		Appelez-nous	-
12	Y04689704		Key		Appelez-nous	-
12	WP4159193		Screw   (Replaces: Y04689705)				$ 4.29
12	3-35284-001		Lock Assembly   (Replaces: Y04690601)				$ 24.42
13	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
13	047716-03		Top Hinge		Appelez-nous	-
14	55781-3		Bushing		Appelez-nous	-
14	045309-01		Spacer, Top Hinge		Appelez-nous	-
15	045443-02		Plate		Appelez-nous	-
16	54233-1		Washer				$ 7.71
17	047717-04		Bottom Hinge		Appelez-nous	-
17	044156-01		Screw		Appelez-nous	-
17	WP8204624		Screw, Upper Hinge   (Replaces: Y04637703)				$ 14.99
18	55781-3		Bushing		Appelez-nous	-
19	Y04529701		Shim		Appelez-nous	-
20	Y04529702		Shim		Appelez-nous	-
21	045434-01		Nut		Appelez-nous	-
22	045532-03		Kickplate		Appelez-nous	-
23	1-80247-101		Clip   (Replaces: Y04552001)			Immediately	$ 9.86
23	WP90767		Screw   (Replaces: Y04637304)			Immediately	$ 7.04
