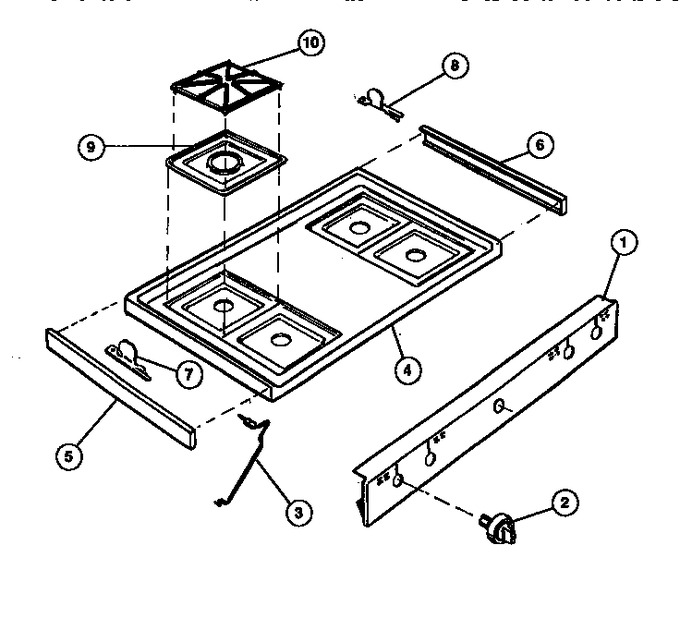

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205470 | Panel-manifold |
|
- | |||||
| 2 | 3205135 | Knob-top Valve (4) |
|
- | |||||
| 3 | 3013818 | Rod, Main Top Support |
|
- | |||||
| 4 | 3934050 | Main-top (almond) |
|
- | |||||
| 4 | 3934051 | Main-top (white) |
|
- | |||||
| 5 | 3051354 | Trim, Main Top, Lh |
|
- | |||||
| 6 | 3051355 | Trim, Main Top (rh) |
|
- | |||||
| 7 | 08067746 | Brkt, Main Top (lh) |
|
- | |||||
| 8 | 08067747 | Brkt, Main Top (rh) |
|
- | |||||
| 9 | 3131299 | Pan-burner (4) |
|
- | |||||
| 10 | 3018432 | Grate (4) |
|
- | |||||
| *31799 | 3206266 | Retainer-wire (4) |
|
- |
