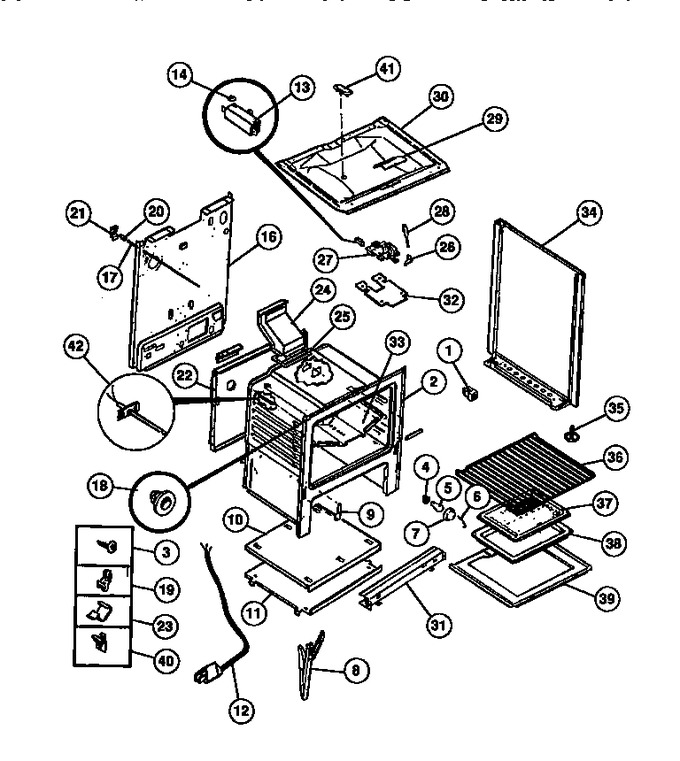

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer-bodyside, (8)				$ 3.62
3	316282700		Screw-bottom   (Replaces: 3131732)				$ 9.93
4	3014073		Socket-oven Light		Appelez-nous	-
5	40A15		Light-bulb-oven   (Replaces: 5303013071)			Immediately	$ 1.98
6	3204483		Retainer-glass		Appelez-nous	-
7	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
8	5303051414		Channel-door Hinge		Appelez-nous	-
9	3131570		Cover Hinge Cutout				$ 7.35
10	3131951		Shield-heat-upper		Appelez-nous	-
11	3131313		Shield-heat-lower		Appelez-nous	-
12	5304534377		Cord, Power   (Replaces: 3202006)				$ 26.85
13	3204592		Switch-latch		Appelez-nous	-
14	08067776		Fastener-push-in		Appelez-nous	-
16	3203082		Back-main		Appelez-nous	-
17	5303209316		Rod Light		Appelez-nous	-
18	3131903		Bumper				$ 55.36
19	3203010		Fstnr (8au Type)   (Replaces: 5303012323)				$ 14.89
20	5303202622		Switch, Door		Appelez-nous	-
21	5303131289		Brkt-light Switch		Appelez-nous	-
22	08067991		Shield, Heat		Appelez-nous	-
23	3011813		Clip-wire				$ 14.79
24	3131931		Flue		Appelez-nous	-
25	08067965		Gasket-flue		Appelez-nous	-
26	3203218		Knob-latch		Appelez-nous	-
27	5303015453		Latch-door Bi Metal				$ 172.04
28	5303131357		Handle-latch				$ 37.33
29	08067757		Cover Plate		Appelez-nous	-
30	3011597		Burner Box		Appelez-nous	-
31	3200835		Shield, Main Front		Appelez-nous	-
32	3051413		Shield-latch		Appelez-nous	-
33	3200836		Shield-heat Baffle		Appelez-nous	-
34	3205621		Panel-b/s Lh (almond)		Appelez-nous	-
34	3205620		Panel-b/s Lh (white)		Appelez-nous	-
35	5303203397		Screw-leveling				$ 14.49
36	5303131973		Rack, Oven (2)		Appelez-nous	-
37	5303131356		Insert-broiler Pan		Appelez-nous	-
38	5303013568		Pan-broiler		Appelez-nous	-
39	3011519		Bottom-oven		Appelez-nous	-
40	3051162		Glide Util Drawer			Immediately	$ 8.22
41	3015371		Cover-burner Box		Appelez-nous	-
42	5304497424		Probe-oven Temp   (Replaces: 3204593)			Immediately	$ 38.32
*31809	08068018		Shield-wire		Appelez-nous	-
*31809	3131593		Shield-latch		Appelez-nous	-
*31810	19100200012		Diagram-wiring (not For Purchase)		Appelez-nous	-
*31810	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
11A	08067992		Shield, Wool (non-illustrated)		Appelez-nous	-
14A	08067978		Stud-spacer (non-illustrated)		Appelez-nous	-
33A	3200834		Shield-heat B/s (non-illustrated)		Appelez-nous	-
34A	3205623		Panel-b/s Rh (white)		Appelez-nous	-
34A	3205624		Panel-b/s Rh (almond)		Appelez-nous	-
35A	241T017P10		Fstnr-tee Nut Leveler Leg (non-illustrated)		Appelez-nous	-
39A	3014226		Support-oven Bottom, (non-illustrated)		Appelez-nous	-
39B	08067961		Fastener-power Cord		Appelez-nous	-
39C	3204582		Insulation-wool-back (non-illustrated)		Appelez-nous	-
39D	08067973		Insulation-front Frame (non-illustrated)				$ 51.74
39E	3200833		Insulation-oven-wrap (non-illustrated)		Appelez-nous	-
39F	3131304		Insulation-oven-top (non-illustrated)		Appelez-nous	-
40A	3131314		Shield, Oven Top (non-illustrated)		Appelez-nous	-
40B	3131590		Shield-rear Wall (non-illustrated)		Appelez-nous	-
41A	3934056		Anti-tip Brkt (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
